Ingersoll Cutting Tools

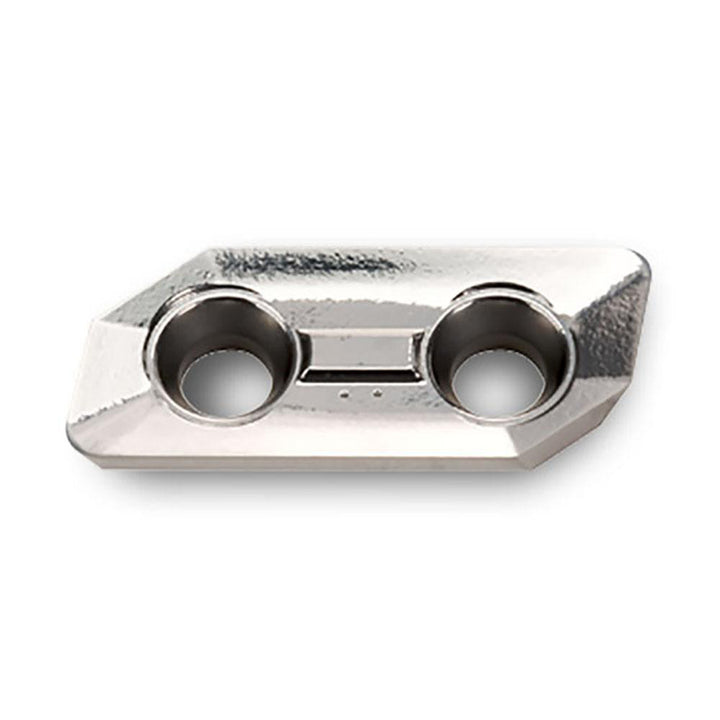

XEET250416R-P IN15K Solid Carbide Insert, Grade IN15K - Ingersoll Cutting Tools 5840235
MFR# 5840235ISO/ANSI# XEET250416R-P IN15KSeries BEHB
$54.20List $68.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN15K
MaterialSolid Carbide
Description
The Ingersoll Cutting Tools 5840235 is a XEET250416R-P IN15K solid carbide indexable insert, grade IN15K. Suited for non-ferrous metal.
Specifications
Ansi codeBEHB82R118 S IN15K
Chip breakerFlat Top
Coating processUncoated
Corner radius0.0620
Cutter series compatibility15X1X; 5X6X
Cutting edge effective length0.8000
Cutting edge styleSharp
Included angle degree82
Inscribed circle0.4520
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size82
Insert size code82
Insert styleBEHB
Iso codeXEET250416R-P IN15K
Length1.0110
Length range1.0000+
Manufacturers catalog number5840235
Manufacturer gradeIN15K
Material applicationNon-Ferrous Metal
Material gradeFine Grain; Medium Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.4520
