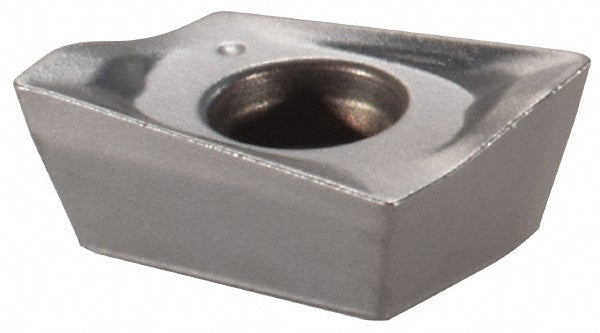

AOMT060202R IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5840533

Ingersoll Cutting Tools

AOMT060202R IN1030 Solid Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5840533

MFR# 5840533ISO/ANSI# AOMT060202R IN1030Series AOMT

$17.09List $21.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN1030
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5840533 is a AOMT060202R IN1030 solid carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAOMT060202R IN1030
Chip breakerNone
Coating finishTiCN
Coating processPVD
Corner radius in1/128
Cutter series compatibility12_1D; 12J1D; 22J3D
Cutting edge effective length0.2200
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.1660
Inscribed circle range0.1000 to 0.2000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size06
Insert size code060202
Insert styleAOMT
Iso codeAOMT060202R IN1030
Length0.2280
Length range0.0000 to 0.3200
Manufacturers catalog number5840533
Manufacturer gradeIN1030
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1030
Thickness range0.1000 to 0.1250
Width0.1660
