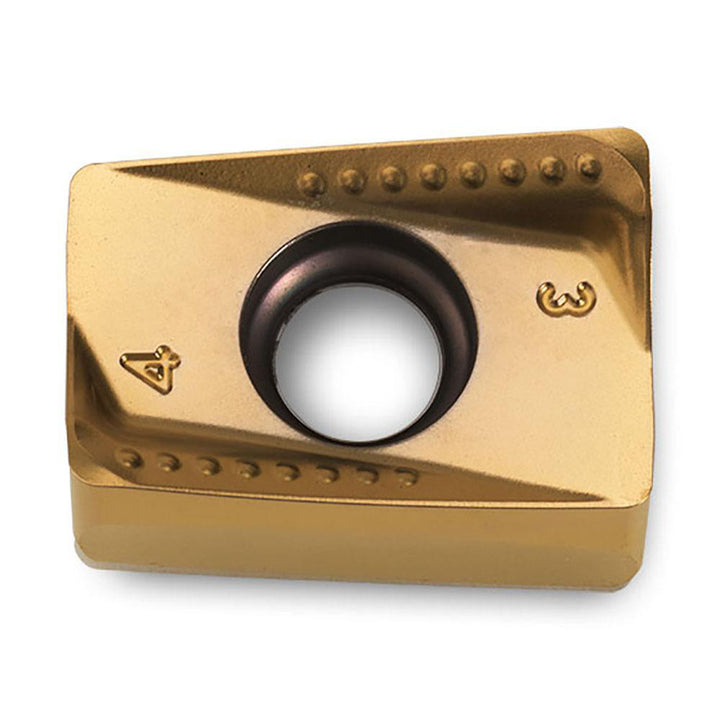

ANHU160708R IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5840788

Ingersoll Cutting Tools

ANHU160708R IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5840788

MFR# 5840788ISO/ANSI# ANHU160708R IN2505Series ANHU

$31.79List $40.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeIN2505
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5840788 is a ANHU160708R IN2505 solid carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeANHU160708R IN2505
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility1TJ1N; TJ5N
Cutting edge effective length0.5900
Cutting edge styleChamfered
Included angle degree85
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size16
Insert size code160708
Insert styleANHU
Iso codeANHU160708R IN2505
Length0.6100
Length range0.6000 to 0.6500
Manufacturers catalog number5840788
Manufacturer gradeIN2505
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.4170
Thickness range0.3500 to 0.5000
Width0.4330
