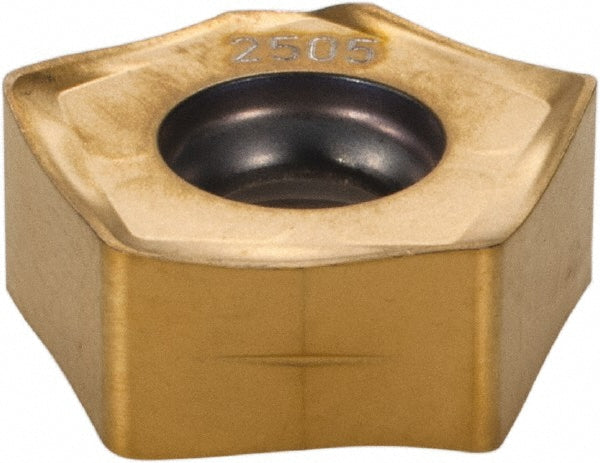

PNCU0805GNTR-W IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5869105

Ingersoll Cutting Tools

PNCU0805GNTR-W IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5869105

MFR# 5869105ISO/ANSI# PNCU0805GNTR-W IN2505Series PNCU

$33.70List $42.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapePentagon
GradeIN2505
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5869105 is a PNCU0805GNTR-W IN2505 solid carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codePNCU0805GNTR-001 J IN2505
Chip breakerW
Coating finishTiAlN
Coating processPVD
Corner radius0.0300
Cutter series compatibility4W2A; DM5G
Cutting edge styleCorner Rounded
Included angle degree108
Inscribed circle0.4500
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapePentagon
Insert size08
Insert size code0805
Insert stylePNCU
Iso codePNCU0805GNTR-W IN2505
Length0.4500
Length range0.4500 to 0.5000
Manufacturers catalog number5869105
Manufacturer gradeIN2505
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1900
Thickness range0.1850 to 0.2000
Width0.4500
