Ingersoll Cutting Tools

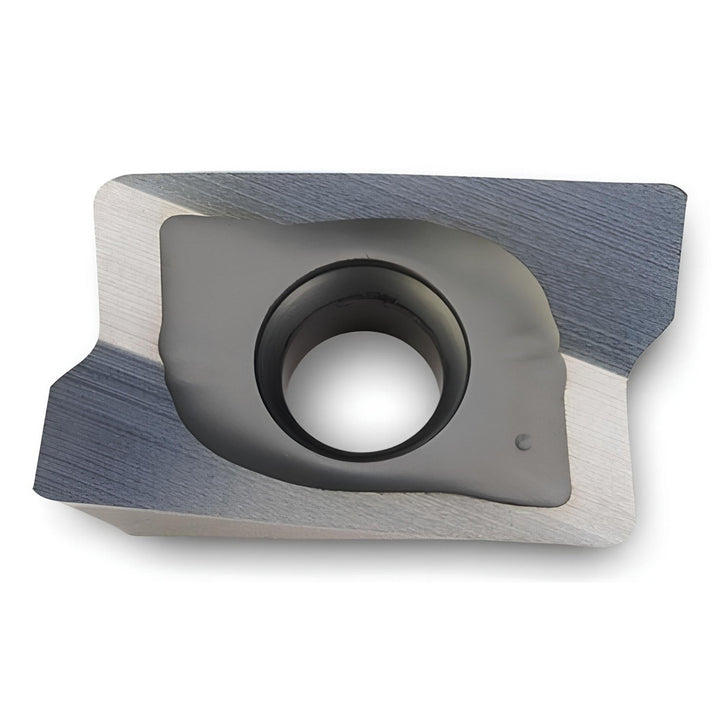

AOCT170508FR-P IN10K Solid Carbide Insert, Grade IN10K - Ingersoll Cutting Tools 5873030
MFR# 5873030ISO/ANSI# AOCT170508FR-P IN10KSeries AOCT
$28.62List $36.65
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC27/64
ShapeParallelogram
GradeIN10K
MaterialSolid Carbide
Description
The Ingersoll Cutting Tools 5873030 is a AOCT170508FR-P IN10K solid carbide indexable insert, grade IN10K. Suited for non-ferrous metal.
Specifications
Ansi codeAOCT170508FR-P IN10K
Chip breakerP
Coating processUncoated
Corner radius in1/32
Cutting edge styleSharp
Included angle degree85
Inscribed circle in27/64
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170508
Insert styleAOCT
Iso codeAOCT170508FR-P IN10K
Length0.6920
Length of cut (mm)16.0800
Length range0.6500 to 0.7000
Manufacturers catalog number5873030
Manufacturer gradeIN10K
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Maximum depth of cut0.6330
Multi use toolNo
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2070
Thickness range0.2000 to 0.2200
Width0.4210
