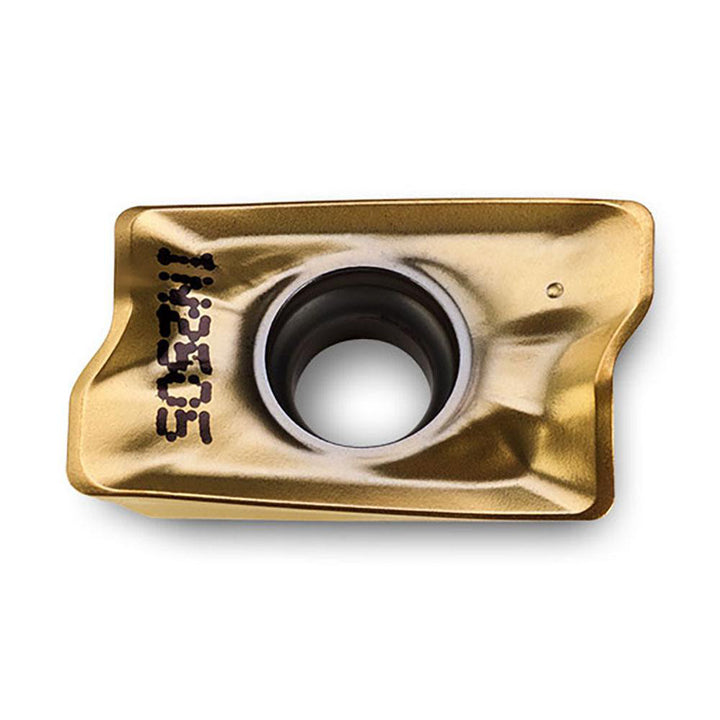

AOMT170508R IN2510 Solid Carbide Insert, Grade IN2510, TiAlN - Ingersoll Cutting Tools 5873039
MFR# 5873039ISO/ANSI# AOMT170508R IN2510Series AOMT
$22.80List $28.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN2510
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5873039 is a AOMT170508R IN2510 solid carbide indexable insert, grade IN2510, TiAlN coated. Suited for cast iron, non-ferrous metal.
Specifications
Ansi codeAOMT170508R IN2510
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility12J1G; 12L1G; 12N1G; 22J3G; 22J5G; 2J1G; 2L1G
Cutting edge effective length0.6330
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.4210
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170508
Insert styleAOMT
Iso codeAOMT170508R IN2510
Length0.7280
Length range0.7000 to 0.9000
Manufacturers catalog number5873039
Manufacturer gradeIN2510
Material applicationCast Iron; Non-Ferrous Metal
Material gradeFine Grain
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2180
Thickness range0.2000 to 0.2200
Width0.4210
