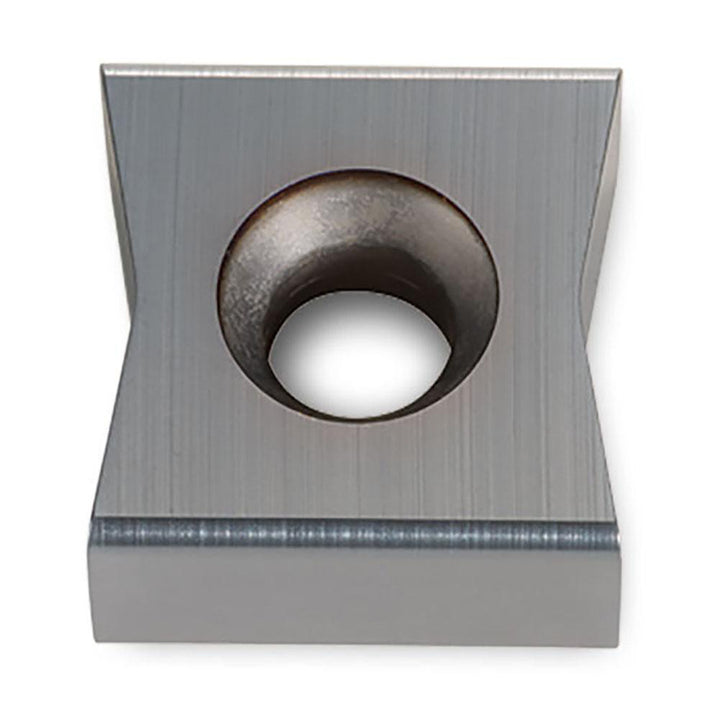

NNE324-100 IN2030 Solid Carbide Insert, Grade IN2030, TiAlN - Ingersoll Cutting Tools 5880725

Ingersoll Cutting Tools

NNE324-100 IN2030 Solid Carbide Insert, Grade IN2030, TiAlN - Ingersoll Cutting Tools 5880725

MFR# 5880725ISO/ANSI# NNE324-100 IN2030Series NNE

$26.30List $33.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeIN2030
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5880725 is a NNE324-100 IN2030 solid carbide indexable insert, grade IN2030, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.

Specifications

Ansi codeNNE324-100 K IN2030
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVHU; VK5V; VK6V
Cutting edge styleHoned
Inscribed circle0.4850
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size32
Insert size code324
Insert styleNNE
Iso codeNNE324-100 IN2030
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number5880725
Manufacturer gradeIN2030
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4850
