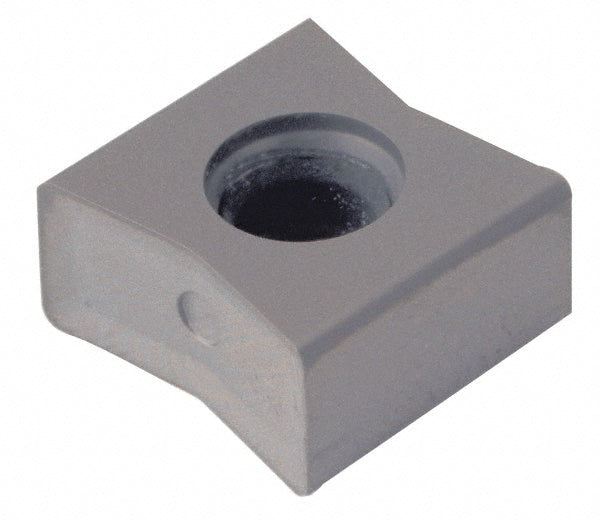

NNE324-100 IN2015 Solid Carbide Insert, Grade IN2015, TiAlN - Ingersoll Cutting Tools 5880727

Ingersoll Cutting Tools

NNE324-100 IN2015 Solid Carbide Insert, Grade IN2015, TiAlN - Ingersoll Cutting Tools 5880727

MFR# 5880727ISO/ANSI# NNE324-100 IN2015Series NNE

$29.55List $37.85 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeIN2015
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5880727 is a NNE324-100 IN2015 solid carbide indexable insert, grade IN2015, TiAlN coated. Suited for steel, cast iron, non-ferrous metal.

Specifications

Ansi codeNNE324-100 J IN2015
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVHU; VK5V; VK6V
Cutting edge styleHoned
Inscribed circle0.4850
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size32
Insert size code324
Insert styleNNE
Iso codeNNE324-100 IN2015
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number5880727
Manufacturer gradeIN2015
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Material gradeFine Grain; Medium Grain
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4850
