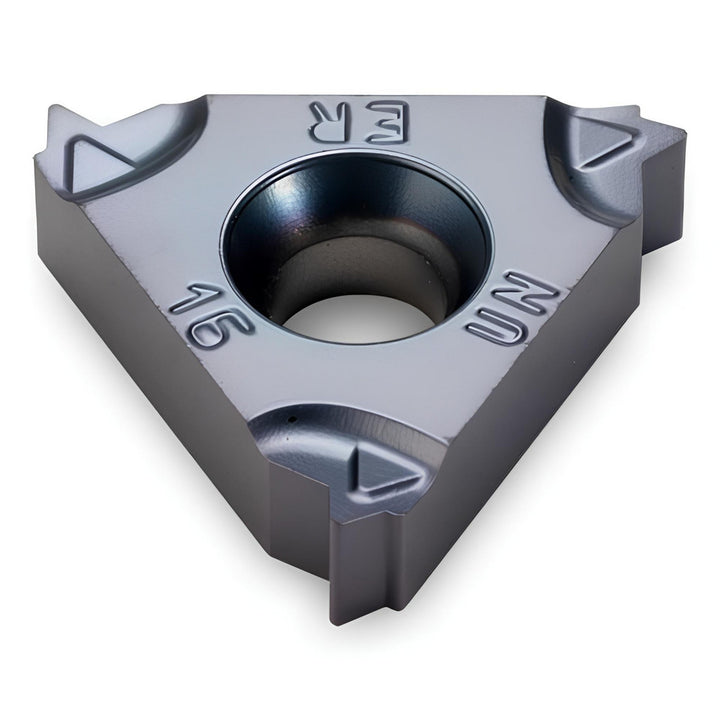

16ERM13UN Carbide Insert, Grade TT9030, TiAlN - Ingersoll Cutting Tools 5902339

Ingersoll Cutting Tools

16ERM13UN Carbide Insert, Grade TT9030, TiAlN - Ingersoll Cutting Tools 5902339

MFR# 5902339ISO/ANSI# 16ERM13UNSeries American UN M-Type

$22.61List $28.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeTT9030
MaterialCarbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5902339 is a 16ERM13UN carbide indexable insert, grade TT9030, TiAlN coated. Suited for steel, stainless steel, cast iron.

Specifications

ChipbreakerM
Coating finishTiAlN
Coating processPVD
Corner radius0.0090
Cutting edge to theoretical edge length0.0510
Face of insert to tip centerline0.0390
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Iso code16ERM13UN
Manufacturer gradeTT9030
Number of teeth per side1
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialHard Material; Superalloys & Titanium; Non-Ferrous Metal
Thickness0.1430
Thread standardUN 60 Degree
Thread typeExternal
