16ER18UN Carbide Insert, Grade TT9030, TiAlN - Ingersoll Cutting Tools 5993268

Ingersoll Cutting Tools

16ER18UN Carbide Insert, Grade TT9030, TiAlN - Ingersoll Cutting Tools 5993268

MFR# 5993268ISO/ANSI# 16ER18UNSeries American UN Regular Type

$26.98List $34.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
GradeTT9030
MaterialCarbide
CoatingTiAlN

Description

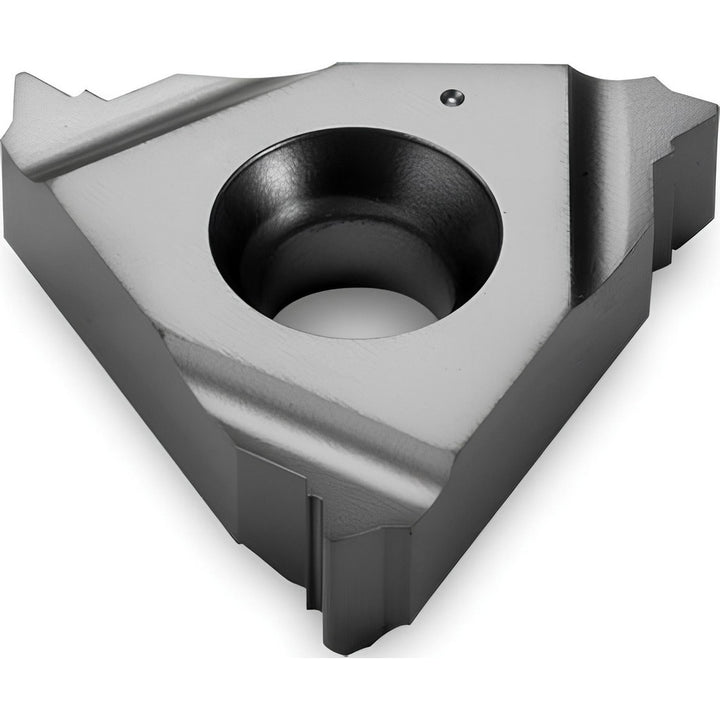

The Ingersoll Cutting Tools 5993268 is a 16ER18UN carbide indexable insert, grade TT9030, TiAlN coated. Suited for steel, stainless steel, cast iron.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coating processPVD
Corner radius0.0070
Cutting edge to theoretical edge length0.0390
Face of insert to tip centerline0.0310
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16ER
Iso code16ER18UN
Manufacturer gradeTT9030
Number of teeth per side1
Pitch (mm)1.41
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialHard Material; Superalloys & Titanium; Non-Ferrous Metal
Thickness0.1430
Thread standardUN 60 Degree
Thread typeExternal
