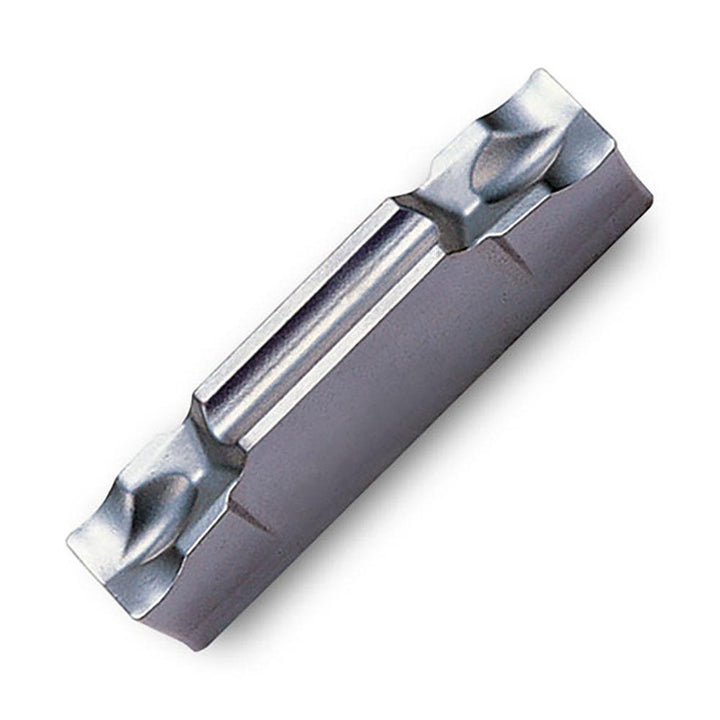

TDJ2 Solid Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 6000167

Ingersoll Cutting Tools

TDJ2 Solid Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 6000167

MFR# 6000167ISO/ANSI# TDJ2Series TDJ

$32.29List $39.95 Save 19%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTT8020
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 6000167 is a TDJ2 solid carbide indexable insert, grade TT8020, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeTDJ2
ChipbreakerJ
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Cutting height0.1850
Cutting tool applicationGrooving; Parting
Cutting width0.0787
Full radiusNo
Hole diameter0.0000
Insert handNeutral
Insert height0.1850
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size2
Insert size code2
Insert styleTDJ
Iso codeTDJ2
Lead angle0
Lead angle directionNeutral
Manufacturer gradeTT8020
Material gradeC1; C2; C3; C4; C5; C6
Maximum depth of cut0.7480
Multi use toolYes
Overall length0.7900
Primary workpiece materialSteel; Stainless Steel
Relief angle7.000
Single or double endDouble
