Ingersoll Cutting Tools

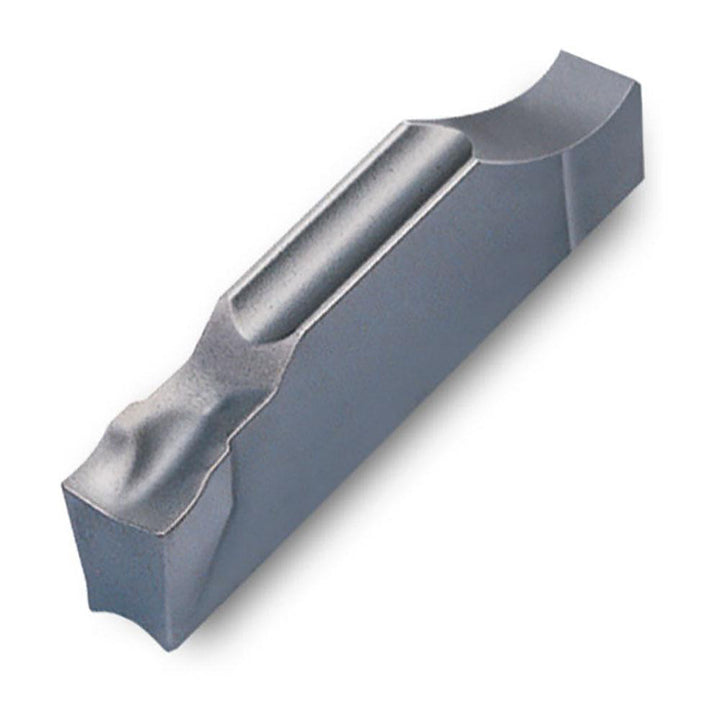

TSJ3 Carbide Insert, Grade TT9080, TiAlN - Ingersoll Cutting Tools 6001114
MFR# 6001114ISO/ANSI# TSJ3Series TSJ
$18.71List $23.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTT9080
MaterialCarbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 6001114 is a TSJ3 carbide indexable insert, grade TT9080, TiAlN coated. Suited for steel, stainless steel, super-alloys & titanium.
Specifications
Ansi codeTSJ3
ChipbreakerJ
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Cutting height0.1850
Cutting tool applicationGrooving; Parting
Cutting width0.1180
Full radiusNo
Hole diameter0.0000
Insert handNeutral
Insert height0.1850
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size code3
Insert styleTSJ
Insert width0.1180
Iso codeTSJ3
Lead angle0.000
Lead angle directionNeutral
Manufacturer gradeTT9080
Multi use toolYes
Overall length0.7900
Overall width0.1180
Primary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium
Relief angle7
Secondary workpiece materialCast Iron; Hard Material
Single or double endSingle
StandardsISO
