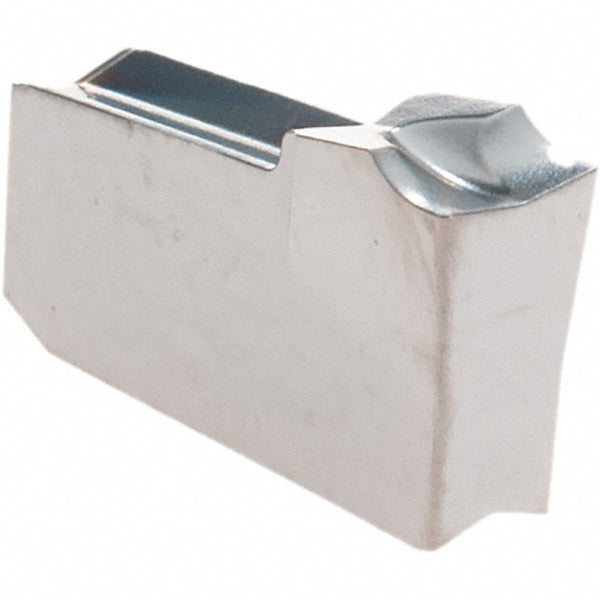

TIMJ3 Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 6050278

Ingersoll Cutting Tools

TIMJ3 Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 6050278

MFR# 6050278ISO/ANSI# TIMJ3Series TIMJ

$19.04List $23.55 Save 19%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTT8020
MaterialCarbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 6050278 is a TIMJ3 carbide indexable insert, grade TT8020, TiCN coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

Ansi codeTIMJ3
ChipbreakerJ
Coating finishTiCN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Cutting tool applicationGrooving; Parting
Cutting width0.1220
Full radiusNo
Hole diameter0.0000
Insert handNeutral
Insert holding methodSelf Clamp
Insert materialCarbide
Insert seat size4
Insert size code3
Insert styleTIMJ
Insert width0.1220
Iso codeTIMJ3
Lead angle0.000
Lead angle directionNeutral
Manufacturer gradeTT8020
Multi use toolYes
Overall width0.1220
Primary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium
Single or double endSingle
StandardsISO
