Ingersoll Cutting Tools

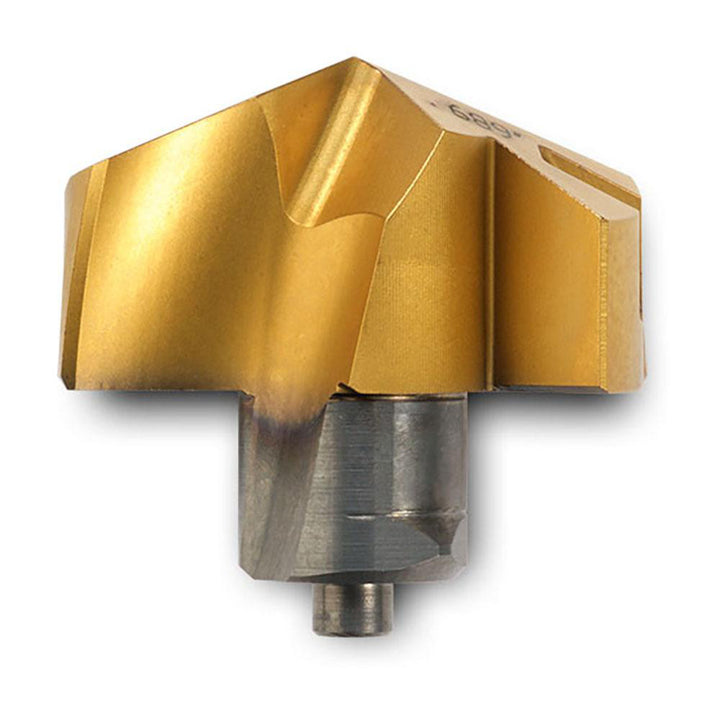

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6102941
MFR# 6102941Series TPA
$89.50List $109.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 2 — minimum order 2
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 6102941 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter0.3031
Drill point angle140
Functional length0.1360
Height0.181000
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size7.5
Iso numberTPA0770R01 IN2505
Manufacturer gradeIN2505
Material gradeMicro Grain
Number of flutes2
Overall length projection0.1810
Point angle140.00
Point typeStandard
Primary workpiece materialSteel
Tip materialSolid Carbide
