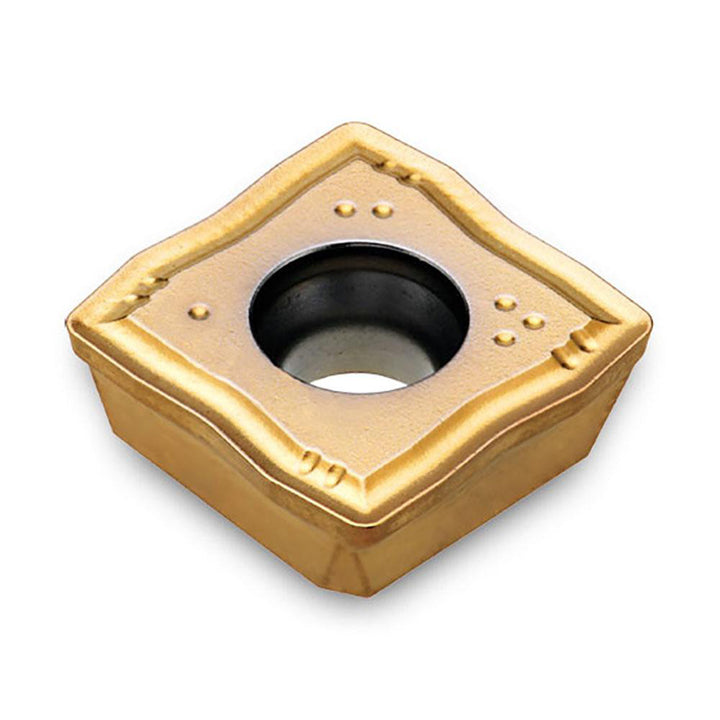

SOMT09T308SK Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 6104898
MFR# 6104898ISO/ANSI# SOMT09T308SKSeries SOMT-SK
$19.12List $23.65
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIN1030
MaterialCarbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 6104898 is a SOMT09T308SK carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSOMT09T308SK
ChipbreakerSK
Coating finishTiCN
Coating processPVD
Compatible drill styleQR
Corner radius0.0310
Included angle degree90
Inscribed circle0.3620
Insert materialCarbide
Insert size09T308
Insert size code09
Insert styleSOMT
Iso codeSOMT09T308SK
Length0.362
Manufacturer gradeIN1030
Material gradeC1; C2; C6
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
ShapeSquare
Thickness0.166
Width0.362
