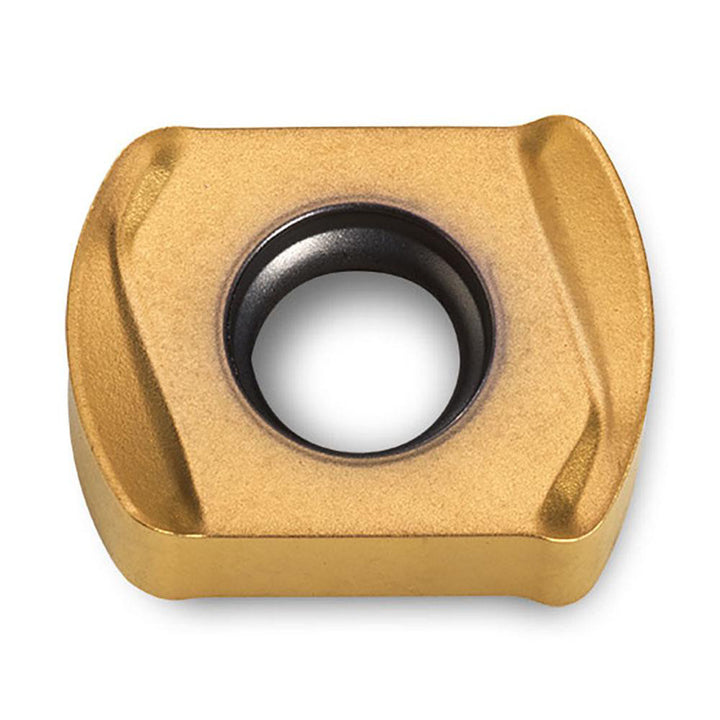

UNLU0904M0TR-ML IN7035 Solid Carbide Insert, Grade IN7035, Al2O3 - Ingersoll Cutting Tools 6111940

Ingersoll Cutting Tools

UNLU0904M0TR-ML IN7035 Solid Carbide Insert, Grade IN7035, Al2O3 - Ingersoll Cutting Tools 6111940

MFR# 6111940ISO/ANSI# UNLU0904M0TR-ML IN7035Series UNLU

$29.44List $37.05 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeIrregular
GradeIN7035
MaterialSolid Carbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 6111940 is a UNLU0904M0TR-ML IN7035 solid carbide indexable insert, grade IN7035, Al2O3 coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeUNLU0904M0TR-ML IN7035
Chip breakerML
Coating finishAl2O3
Coating processMTCVD
Corner radius in3/64
Cutter series compatibility1TG1G; TG1G; TG2G; TG3G; TG4G
Cutting edge styleChamfered
Inscribed circle0.3610
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size09
Insert size code0904
Insert styleUNLU
Iso codeUNLU0904M0TR-ML IN7035
Length in15/32
Length range0.4500 to 0.5000
Manufacturers catalog number6111940
Manufacturer gradeIN7035
Material applicationStainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1890
Thickness range0.1850 to 0.2000
Width0.3610
