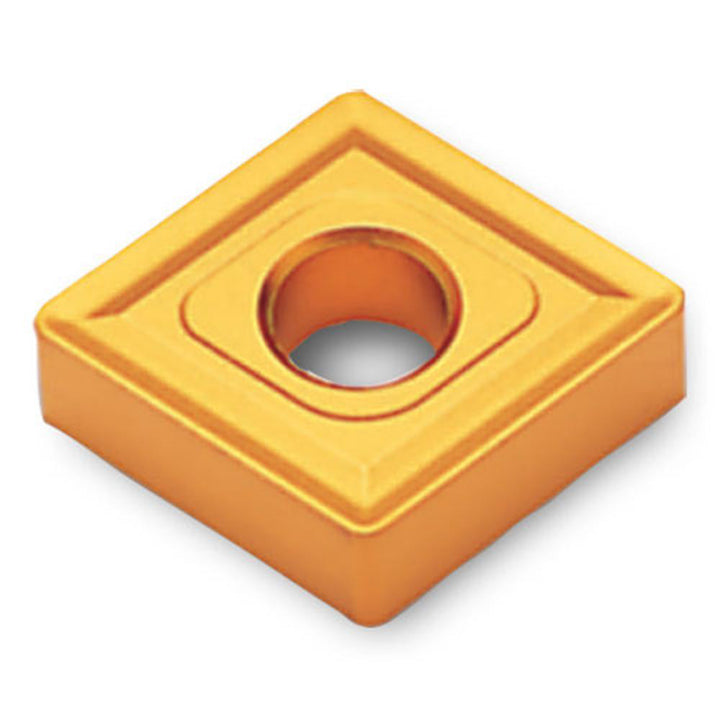

CNMG090408 TT7015 Carbide Insert, Grade TT7015, Al2O3 - Ingersoll Cutting Tools 6117872

Ingersoll Cutting Tools

CNMG090408 TT7015 Carbide Insert, Grade TT7015, Al2O3 - Ingersoll Cutting Tools 6117872

MFR# 6117872ISO/ANSI# CNMG090408Series CNMG

$12.10List $15.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT7015
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 6117872 is a CNMG090408 TT7015 carbide indexable insert, grade TT7015, Al2O3 coated. Suited for cast iron.

Specifications

Ansi insert codeCNMG332
Ansi size code332
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.3820
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code332
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG090408 TT7015
Iso insert codeCNMG090408
Iso size code090408
Manufacturer gradeTT7015
Maximum depth of cut0.1250
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
