Ingersoll Cutting Tools

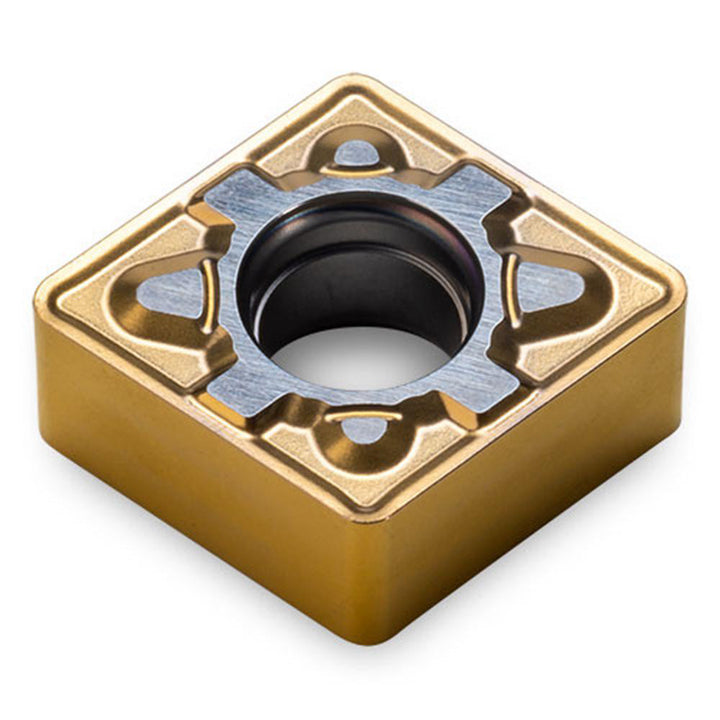

CNMG090408EM TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 6118287
MFR# 6118287ISO/ANSI# CNMG090408EM TT5080Series CNMG
$12.10List $15.25
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 6118287 is a CNMG090408EM TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeCNMG332EMTT5080
Chip breakerEM
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG090408EM TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.1180
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeM
Wiper edgeNo
