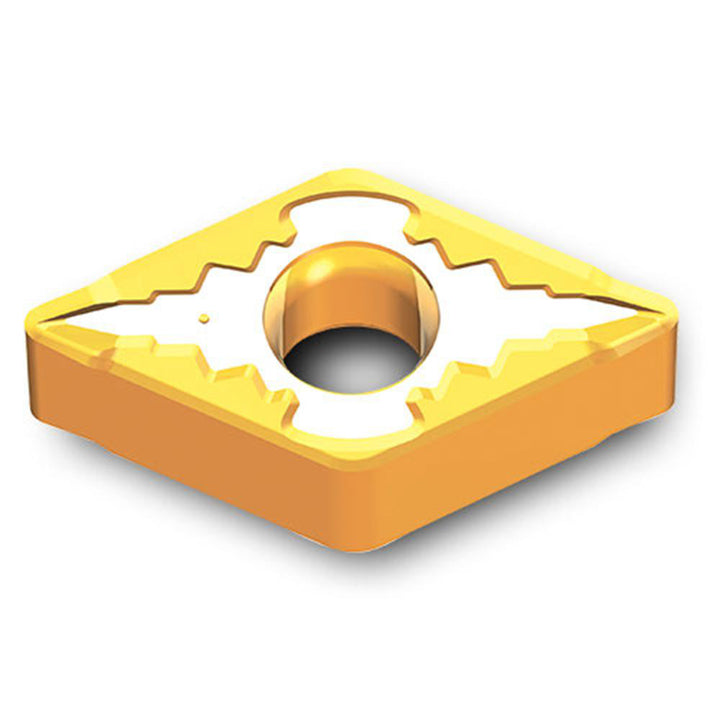

DNMG130508EA TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 6118307

Ingersoll Cutting Tools

DNMG130508EA TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 6118307

MFR# 6118307ISO/ANSI# DNMG130508EA TT5080Series DNMG

$19.14List $24.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeDiamond
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 6118307 is a DNMG130508EA TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.

Specifications

Ansi codeDNMG3.53.52EATT5080
Chip breakerEA
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Included angle55.0
Inscribed circle0.4380
Insert handNeutral
Insert holding methodClamp
Insert length0.5330
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3.53.52
Insert styleDNMG
Insert thickness0.2190
Iso codeDNMG130508EA TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0590
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Wiper edgeNo
