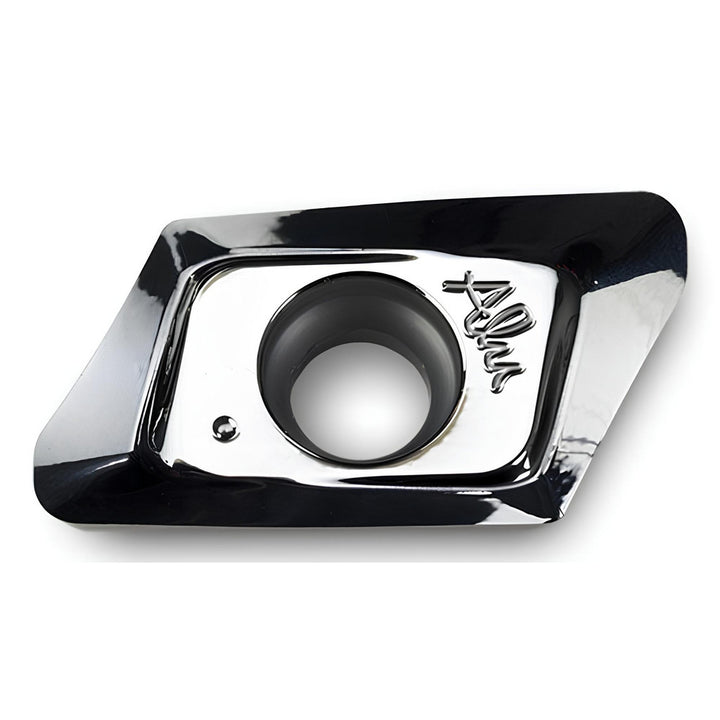

XEVT160516FR-P IN10K Solid Carbide Insert, Grade IN10K - Ingersoll Cutting Tools 6120032

Ingersoll Cutting Tools

XEVT160516FR-P IN10K Solid Carbide Insert, Grade IN10K - Ingersoll Cutting Tools 6120032

MFR# 6120032ISO/ANSI# XEVT160516FR-P IN10KSeries XEVT

$30.31List $37.50 Save 19%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN10K
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 6120032 is a XEVT160516FR-P IN10K solid carbide indexable insert, grade IN10K. Suited for non-ferrous metal.

Specifications

Ansi codeXEVT160516FR-P IN10K
Chip breakerP
Coating processUncoated
Corner radius in1/16
Cutter series compatibility1AX2K; AX2K
Cutting edge styleCorner Rounded
Inscribed circle0.4410
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160516
Insert styleXEVT
Iso codeXEVT160516FR-P IN10K
Length0.8350
Length of cut (mm)16.0000
Length range0.7000 to 0.9000
Manufacturers catalog number6120032
Manufacturer gradeIN10K
Material applicationNon-Ferrous Metal
Material gradeFine Grain
Maximum depth of cut (mm)16.00
Multi use toolNo
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle20.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.4410
