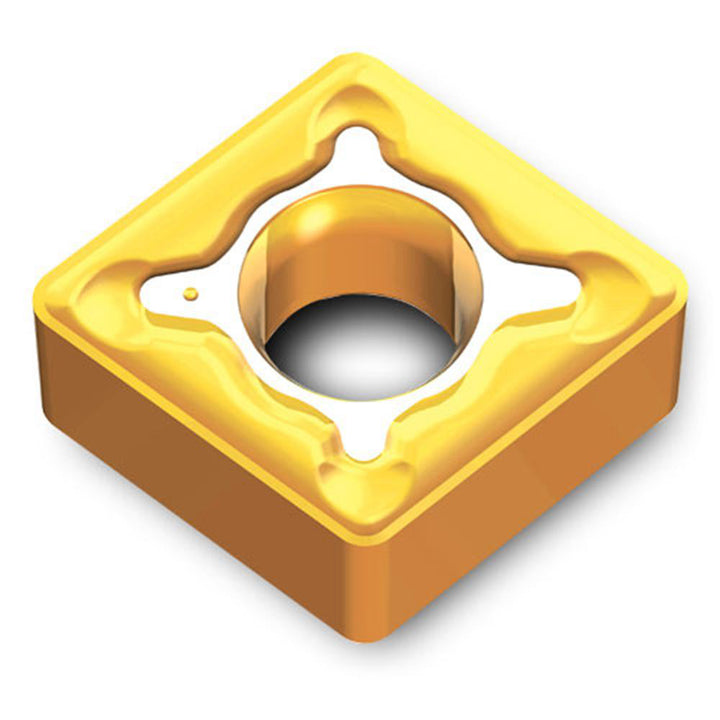

CNMG090404MM TT9225 Solid Carbide Insert, Grade TT9225, TiCN - Ingersoll Cutting Tools 6121768

MFR# 6121768ISO/ANSI# CNMG090404MM TT9225Series CNMG

$12.10List $15.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT9225
MaterialSolid Carbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 6121768 is a CNMG090404MM TT9225 solid carbide indexable insert, grade TT9225, TiCN coated. Suited for stainless steel, super-alloys & titanium.

Specifications

Ansi codeCNMG331MMTT9225
Chip breakerMM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG090404MM TT9225
Manufacturer gradeTT9225
Maximum depth of cut0.1250
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeM
Wiper edgeNo
