Ingersoll Cutting Tools
Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6125292
MFR# 6125292Series TPF
$129.73List $158.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description

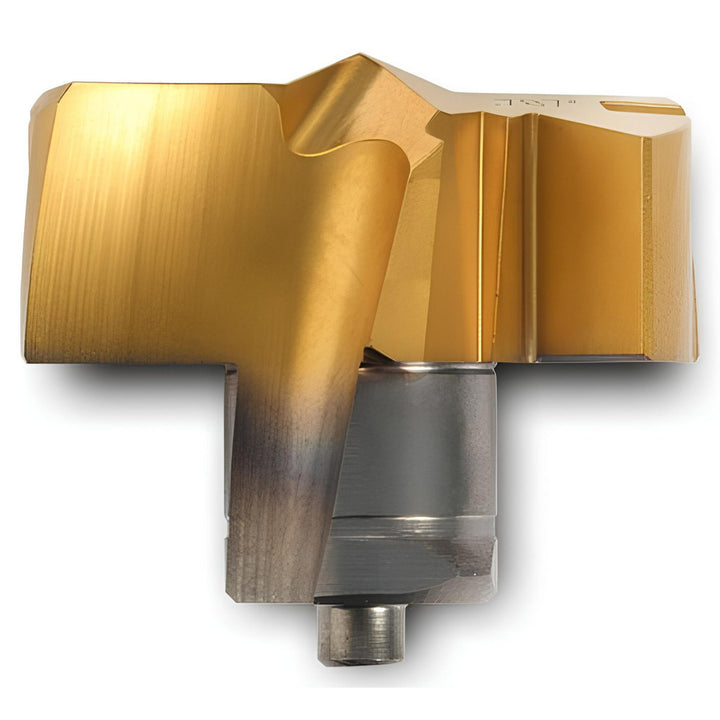

The Ingersoll Cutting Tools 6125292 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
ApplicationsCoolant-Thru; Drilling; Flat Bottom
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)17.00
Drill point angle90
Flute length (mm)6.00
Flute typeStraight
Functional length0.2320
Height (mm)7.00
Included angle degree90
Insert holding methodClamp
Insert seat size17
Iso numberTPF1750R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30; M15; M35; S05; S20
Number of flutes2
Overall length projection0.2870
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Spiral typeStraight
StandardsANSI
StyleTPF
Tip materialSolid Carbide
