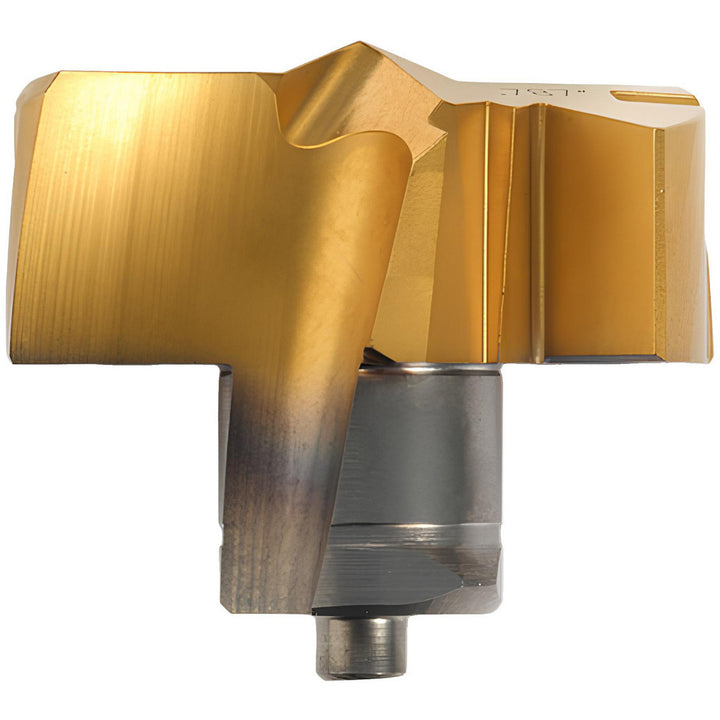

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6125301

MFR# 6125301Series TPF

$166.20List $206.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN

Description

The Ingersoll Cutting Tools 6125301 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsCoolant-Thru; Drilling; Flat Bottom
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)22.00
Drill point angle90
Flute length (mm)8.00
Flute typeStraight
Functional length0.3230
Height (mm)10.00
Included angle degree90
Insert holding methodClamp
Insert seat size22
Iso numberTPF2200R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30; M15; M35; S05; S20
Number of flutes2
Overall length projection0.3940
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Spiral typeStraight
StandardsANSI
StyleTPF
Tip materialSolid Carbide
