Ingersoll Cutting Tools

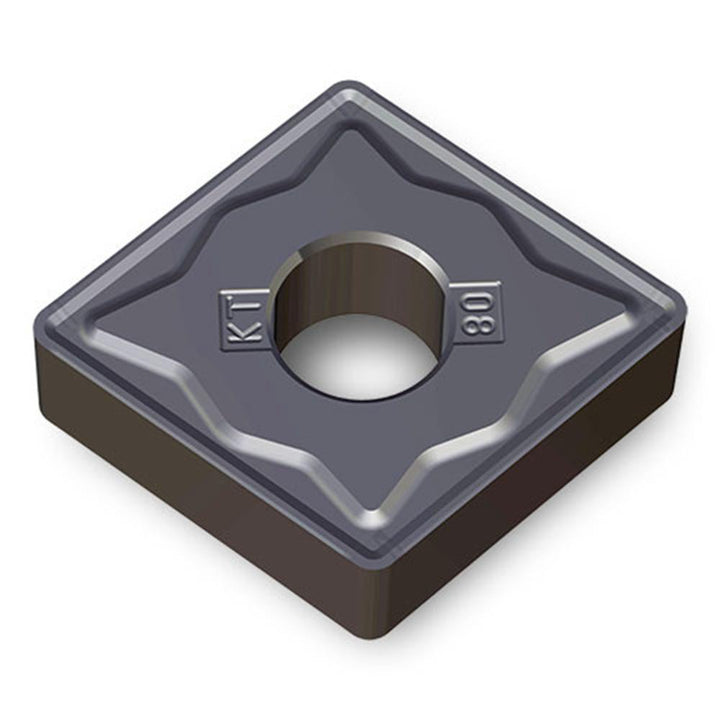

CNMG160612KT TT7015 Carbide Insert, Grade TT7015, TiCN - Ingersoll Cutting Tools 6125453
MFR# 6125453ISO/ANSI# CNMG160612Series CNMG
$27.66List $34.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT7015
MaterialCarbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 6125453 is a CNMG160612KT TT7015 carbide indexable insert, grade TT7015, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeCNMG543
Ansi size code543
Chip breakerKT
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6350
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612KT TT7015
Iso insert codeCNMG160612
Iso size code160612
Manufacturer gradeTT7015
Maximum depth of cut0.2760
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in1
Wiper edgeNo
