UNEU1307R-M IN2504 Solid Carbide Insert, Grade IN2504, TiAlN - Ingersoll Cutting Tools 6126858

Ingersoll Cutting Tools

UNEU1307R-M IN2504 Solid Carbide Insert, Grade IN2504, TiAlN - Ingersoll Cutting Tools 6126858

MFR# 6126858ISO/ANSI# UNEU1307R-M IN2504Series UNEU

$32.06List $40.35 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeIN2504
MaterialSolid Carbide
CoatingTiAlN

Description

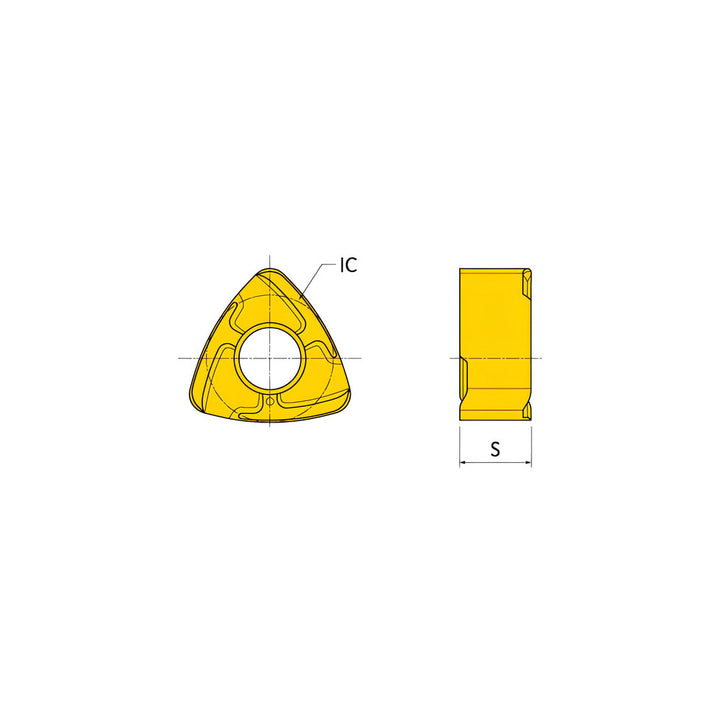

The Ingersoll Cutting Tools 6126858 is a UNEU1307R-M IN2504 solid carbide indexable insert, grade IN2504, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi codeUNEU1307R-M IN2504
Chip breakerM
Coating finishTiAlN
Coating processPVD
Corner radius0.0710
Cutter series compatibility1DG1P; 4W2A; DG6P
Cutting edge styleChamfered
Included angle degree80
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size13
Insert size code1307
Insert styleUNEU
Iso codeUNEU1307R-M IN2504
Manufacturers catalog number6126858
Manufacturer gradeIN2504
Material applicationCast Iron; Hard Material
Material gradeMicrograin
Maximum depth of cut0.0780
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2756
Thickness range0.2500 to 0.3500
Width0.5118
