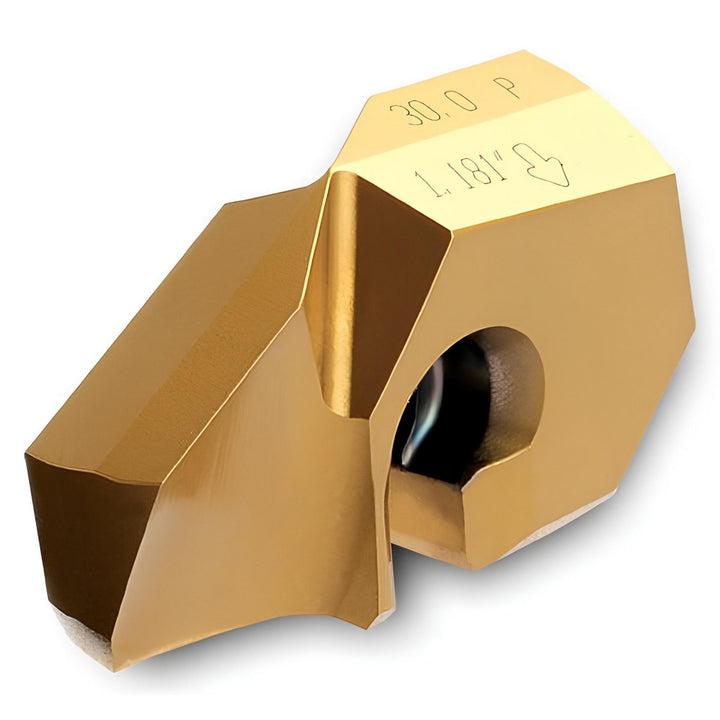

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6137396

MFR# 6137396Series LPA

$183.15List $227.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN

Description

The Ingersoll Cutting Tools 6137396 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)29.00
Drill point angle140
Flute length (mm)7.00
Flute typeHelical
Functional length0.2870
Height (mm)12.00
Included angle degree140
Insert holding methodClamp
Insert seat size28
Iso numberLPA2860R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30; M15; M35; S05; S20
Number of flutes2
Overall length projection0.4620
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsANSI
StyleLPA
Tip materialSolid Carbide
