SOMT070306PS Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6139346

Ingersoll Cutting Tools

SOMT070306PS Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6139346

MFR# 6139346ISO/ANSI# SOMT070306PSSeries SOMT-PS

$17.55List $21.70 Save 19%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN2505
MaterialCarbide
CoatingTiAlN

Description

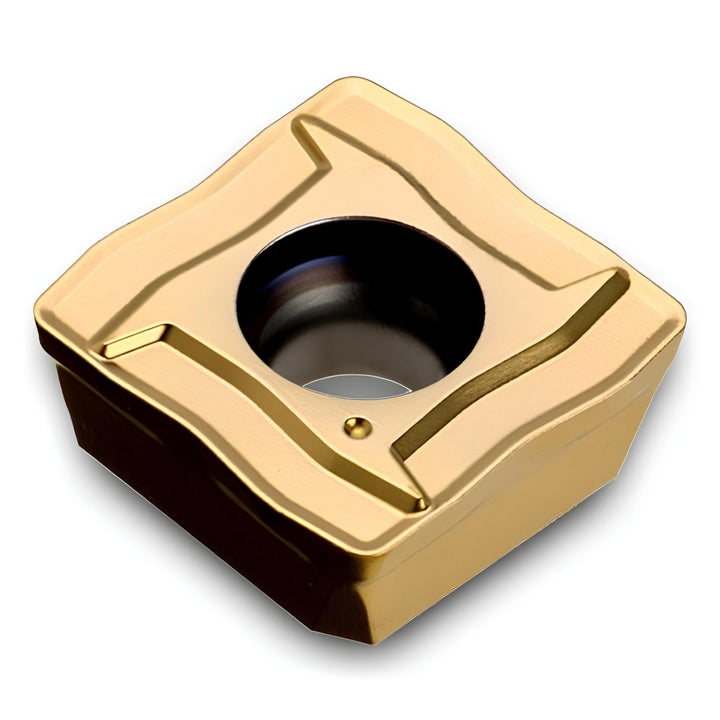

The Ingersoll Cutting Tools 6139346 is a SOMT070306PS carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi codeSOMT070306PS
ChipbreakerPS
Coating finishTiAlN
Coating processPVD
Compatible drill styleQR
Corner radius0.0240
Included angle degree90
Inscribed circle0.2680
Insert handNeutral
Insert materialCarbide
Insert size070306
Insert size code07
Insert styleSOMT
Iso codeSOMT070306PS
Length0.268
Manufacturer gradeIN2505
Material gradeMicrograin
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
ShapeSquare
Thickness0.1140
Width0.268
