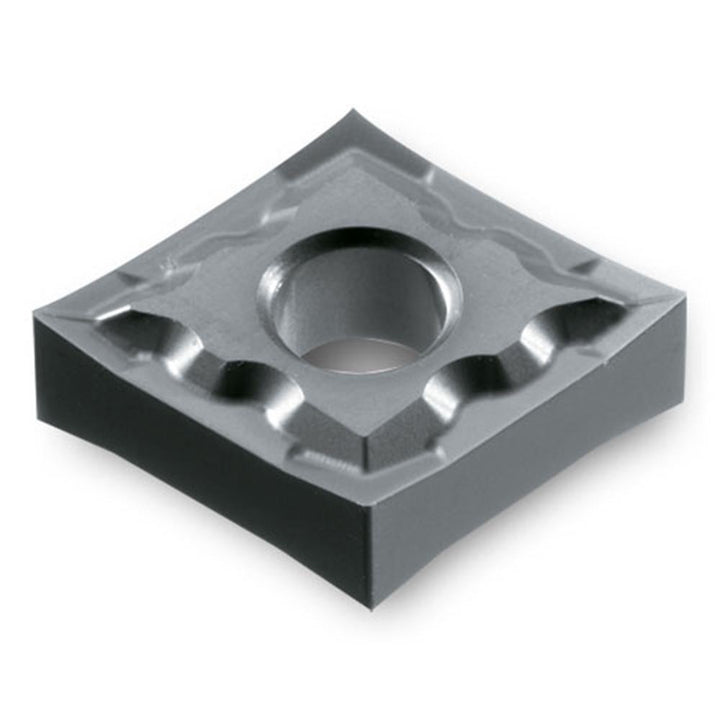

CNGG090404ML K10 Solid Carbide Insert, Grade K10 - Ingersoll Cutting Tools 6139413

Ingersoll Cutting Tools

CNGG090404ML K10 Solid Carbide Insert, Grade K10 - Ingersoll Cutting Tools 6139413

MFR# 6139413ISO/ANSI# CNGG090404ML K10Series CNGG

$14.54List $18.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeK10
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 6139413 is a CNGG090404ML K10 solid carbide indexable insert, grade K10. Suited for cast iron, super-alloys & titanium, non-ferrous metal.

Specifications

Ansi codeCNGG331MLK10
Chip breakerML
Clearance codeN
Coating processUncoated
Corner radius0.0160
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleCNGG
Insert thickness0.1870
Iso codeCNGG090404ML K10
Manufacturer gradeK10
Maximum depth of cut0.1180
Number of cutting edges4
Primary workpiece materialCast Iron; Super-alloys & Titanium; Non-Ferrous Metal
RakeNegative
Relief angle0
Tolerance codeG
Wiper edgeNo
