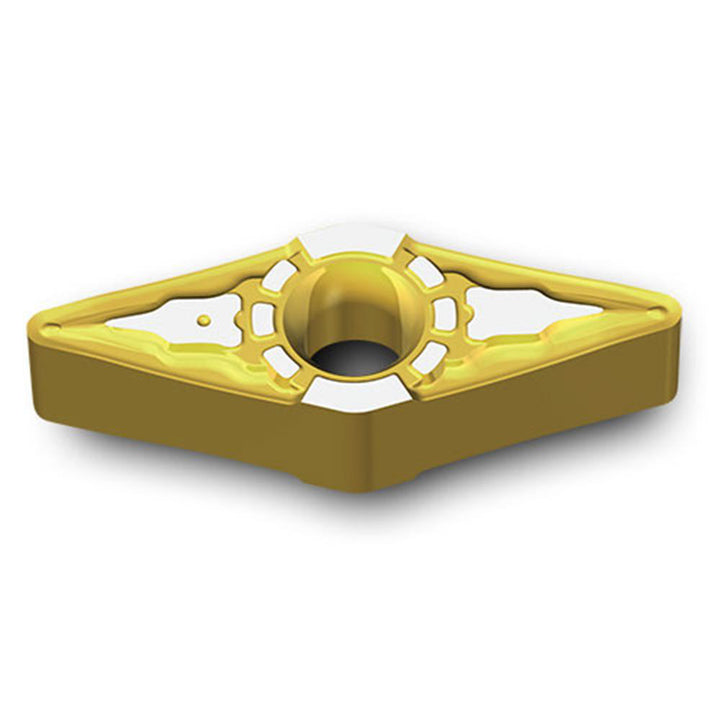

VNMX130404FG TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 6143088
MFR# 6143088ISO/ANSI# VNMX130404FG TT5080Series VNMX
$17.77List $22.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 6143088 is a VNMX130404FG TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerFG
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Included angle35
Inscribed circle0.3130
Insert handNeutral
Insert holding methodClamp
Insert length0.5460
Insert materialCarbide
Insert shapeDiamond
Insert size code2.531
Insert styleVNMX
Insert thickness0.1870
Iso codeVNMX130404FG TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0790
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Tolerance codeM
Wiper edgeNo
