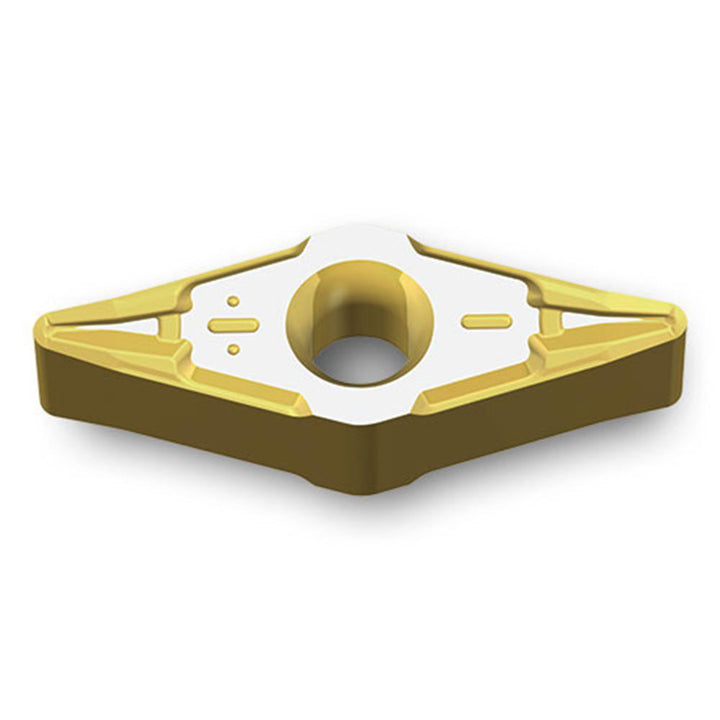

VNMX130402FS TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 6164641

Ingersoll Cutting Tools

VNMX130402FS TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 6164641

MFR# 6164641ISO/ANSI# VNMX130402Series VNMX

$18.09List $22.80 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeV - Diamond (Rhombic) 35-Deg
GradeTT5080
MaterialCarbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 6164641 is a VNMX130402FS TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.

Specifications

Ansi insert codeVNMX2.530.5
Ansi size code2.530.5
Chip breakerFS
Chip breaker operationFinishing
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle35
Inscribed circle0.3130
Insert handNeutral
Insert holding methodClamp
Insert length0.5460
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2.530.5
Insert styleVNMX
Insert thickness0.1870
Iso codeVNMX130402FS TT5080
Iso insert codeVNMX130402
Iso size code130402
Manufacturer gradeTT5080
Maximum depth of cut0.0390
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Width0.3130
Wiper edgeNo
