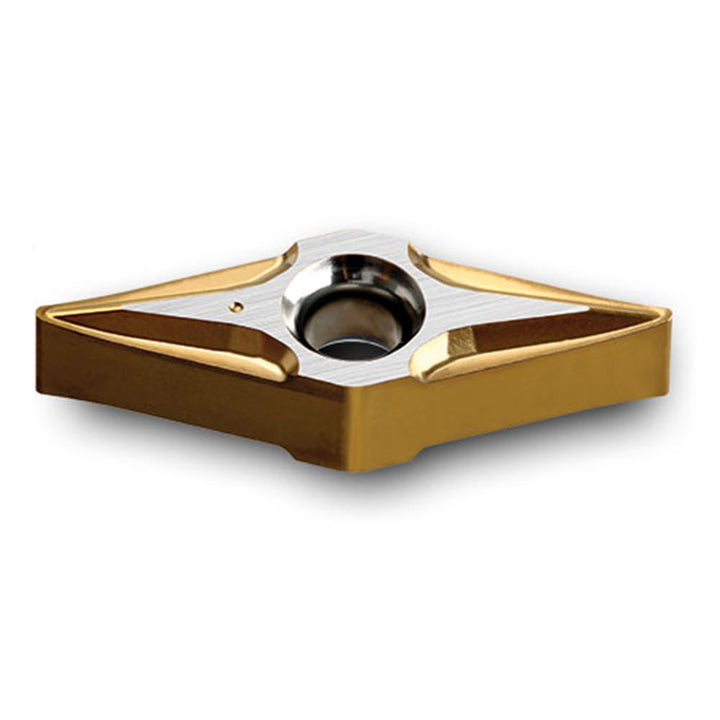

VNGX130402ML TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 6174455
MFR# 6174455ISO/ANSI# VNGX130402ML TT5080Series VNGX
$24.87List $31.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 6174455 is a VNGX130402ML TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerML
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Included angle35
Inscribed circle0.3130
Insert handNeutral
Insert holding methodClamp
Insert length0.5460
Insert materialCarbide
Insert shapeDiamond
Insert size code2.530.5
Insert styleVNGX
Insert thickness0.1870
Iso codeVNGX130402ML TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0500
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Tolerance codeG
Wiper edgeNo
