Ingersoll Cutting Tools

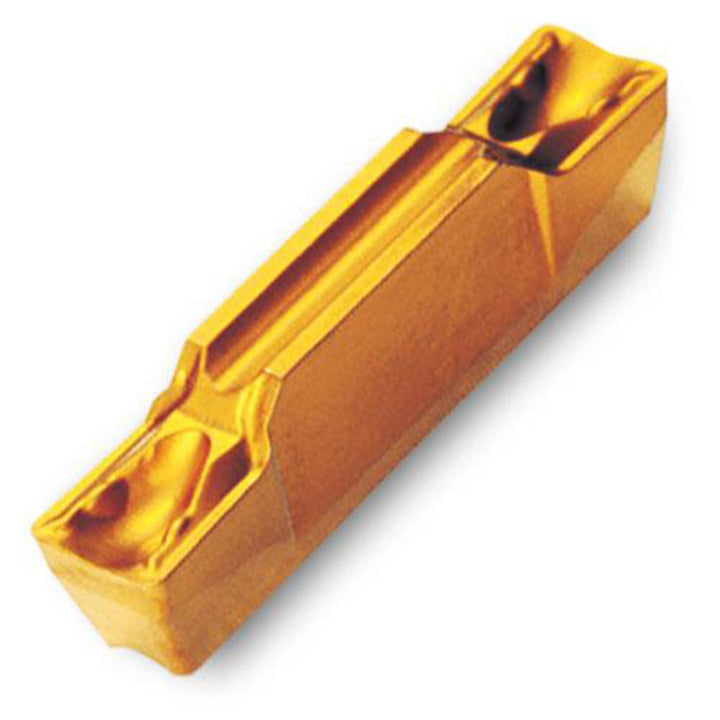

Solid Carbide Insert, Grade TT7505, Al2O3 - Ingersoll Cutting Tools 6178185
MFR# 6178185Series TDXU-E
$32.29List $39.95
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTT7505
MaterialSolid Carbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6178185 is a solid carbide indexable insert, grade TT7505, Al2O3 coated. Suited for cast iron.
Specifications
Chip breakerXU-Universal
Coating finishAl2O3
Coating processCVD
Corner radius0.0120
Cutting width0.1180
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert size code3
Insert styleTDXU
Lead angle90
Manufacturer gradeTT7505
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length0.7900
Primary workpiece materialCast Iron
RakePositive
Rake angle7.00
