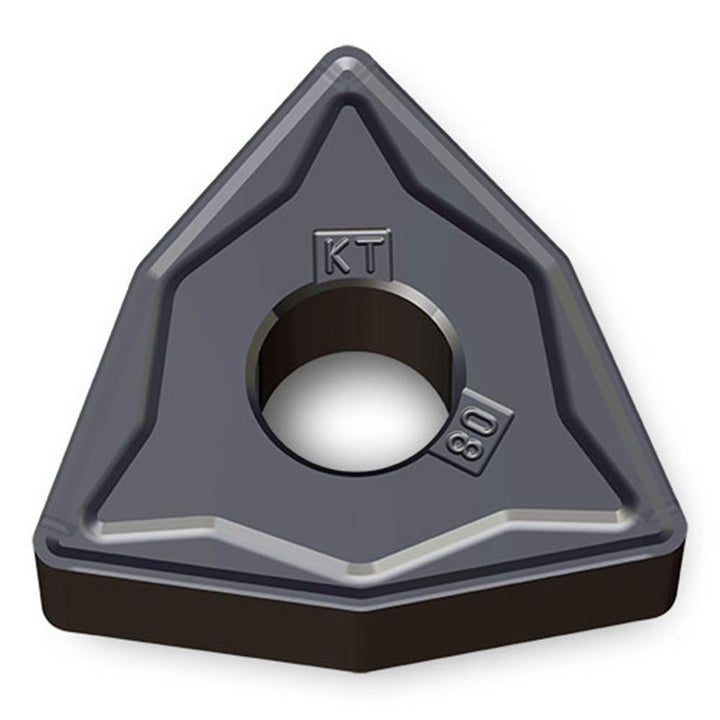

WNMG080412KT TT7025 Carbide Insert, Grade TT7025, Al2O3 - Ingersoll Cutting Tools 6186055

Ingersoll Cutting Tools

WNMG080412KT TT7025 Carbide Insert, Grade TT7025, Al2O3 - Ingersoll Cutting Tools 6186055

MFR# 6186055ISO/ANSI# WNMG080412KT TT7025Series WNMG

$17.42List $21.95 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTT7025
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 6186055 is a WNMG080412KT TT7025 carbide indexable insert, grade TT7025, Al2O3 coated. Suited for cast iron.

Specifications

Chip breakerKT
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0470
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.3430
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG080412KT TT7025
Manufacturer gradeTT7025
Maximum depth of cut0.2170
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
