Ingersoll Cutting Tools

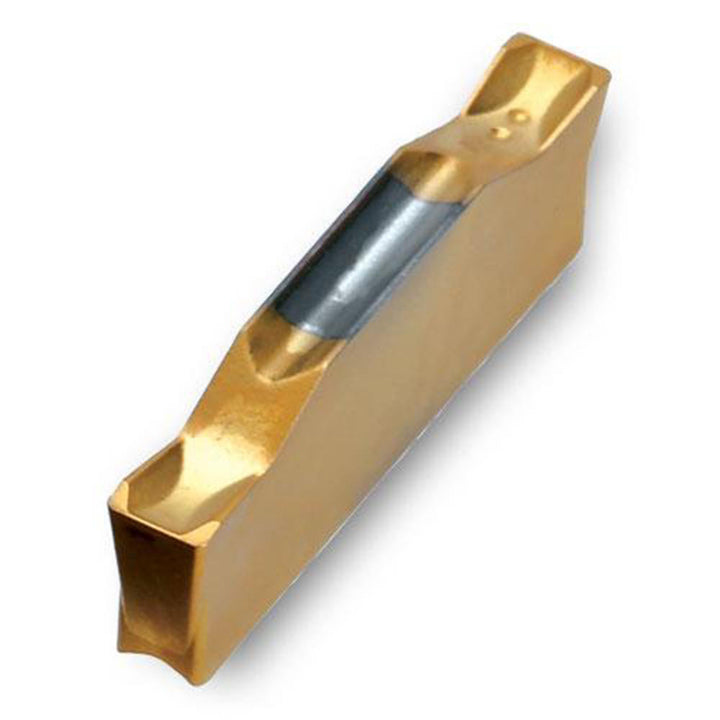

RDC2 Carbide Insert, Grade TT9080, TiAlN - Ingersoll Cutting Tools 6187820
MFR# 6187820ISO/ANSI# RDC2Series RDC
$22.20List $27.95
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTT9080
MaterialCarbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 6187820 is a RDC2 carbide indexable insert, grade TT9080, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeRDC2
ChipbreakerC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Cutting tool applicationGrooving; Parting
Cutting width0.0787
Full radiusNo
Hole diameter0.0000
Insert handNeutral
Insert height0.1570
Insert holding methodClamp
Insert materialCarbide
Insert seat size2
Insert size code2
Insert styleRDC
Iso codeRDC2
Lead angle0
Lead angle directionNeutral
Manufacturer gradeTT9080
Maximum depth of cut0.5120
Multi use toolYes
Overall length0.5510
Primary workpiece materialSteel; Stainless Steel
Relief angle7.000
Single or double endDouble
