Ingersoll Cutting Tools

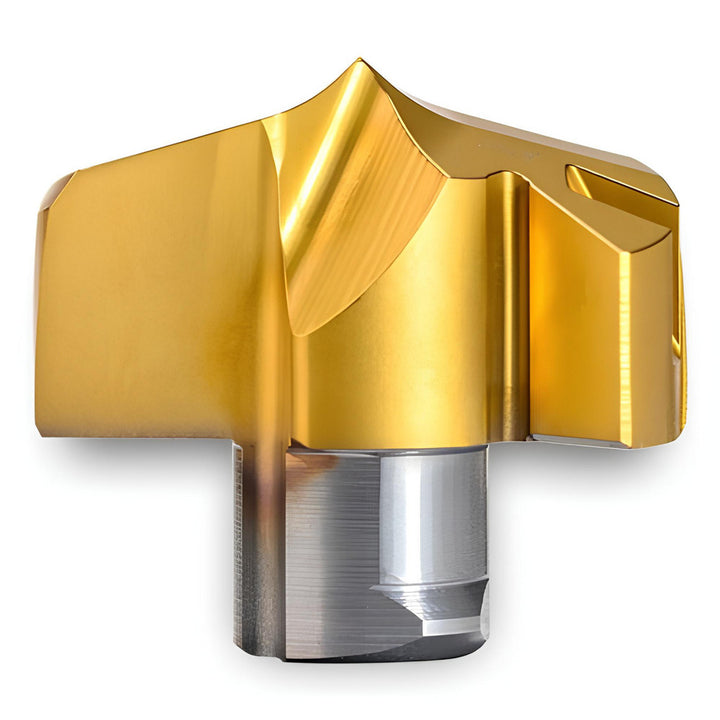

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 6193738
MFR# 6193738Series TPC
$95.24List $116.00
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 6193738 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, cast iron.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)8.00
Drill point angle140
Flute length (mm)3.00
Flute typeHelical
Functional length0.1140
Height (mm)5.00
Included angle degree140
Insert holding methodClamp
Insert seat size7.5
Iso numberTPC0790R01 IN2505
Manufacturer gradeIN2505
Material gradeP15; P30
Number of flutes2
Overall length projection0.1810
Point typeSelf Centering
Primary workpiece materialSteel; Cast Iron
Spiral typeRegular Spiral
StandardsANSI
StyleTPC
Tip materialSolid Carbide
