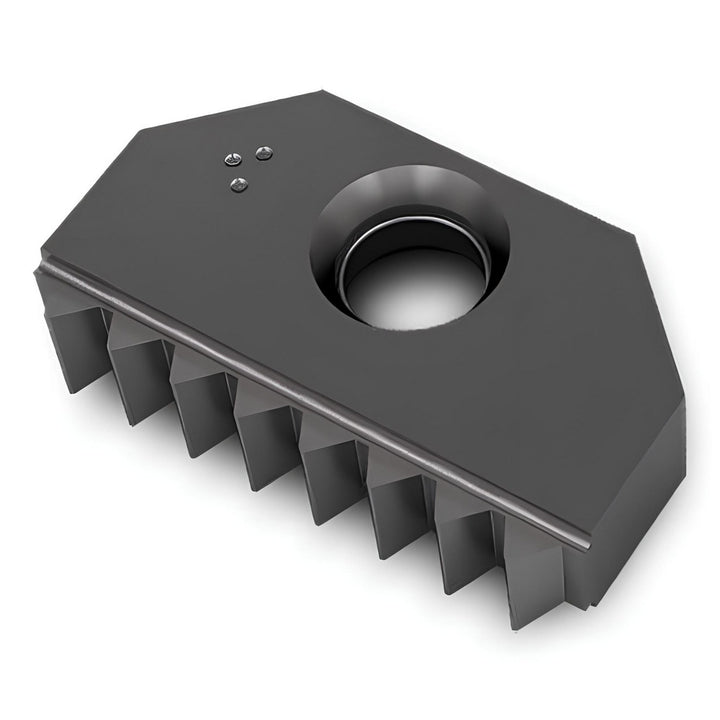

LYEU21120UN-1 IN2005 Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 6197708

Ingersoll Cutting Tools

LYEU21120UN-1 IN2005 Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 6197708

MFR# 6197708ISO/ANSI# LYEU21120UN-1 IN2005Series LYEU

$84.65List $95.10 Save 10%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 2 — minimum order 2

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN2005
MaterialCarbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 6197708 is a LYEU21120UN-1 IN2005 carbide indexable insert, grade IN2005, TiAlN coated. Suited for steel, stainless steel, cast iron, super-alloys & titanium.

Specifications

Ansi codeLYEU21120UN-1 IN2005
Coating finishTiAlN
Coating processPVD
ConicalNo
Insert materialCarbide
Insert size code2112
Insert styleLYEU
Iso codeLYEU21120UN-1 IN2005
Manufacturer gradeIN2005
Pitch (mm)2.12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Super-alloys & Titanium
Teeth per inch12
Thickness0.189
Thread standardUN
Thread typeInternal
