Ingersoll Cutting Tools
CNMG190608PC TT8125B Solid Carbide Insert, Grade TT8125B, TiCN - Ingersoll Cutting Tools 6212177
MFR# 6212177ISO/ANSI# CNMG190608PC TT8125BSeries CNMG
$36.06List $45.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeTT8125B
MaterialSolid Carbide
CoatingTiCN
Description

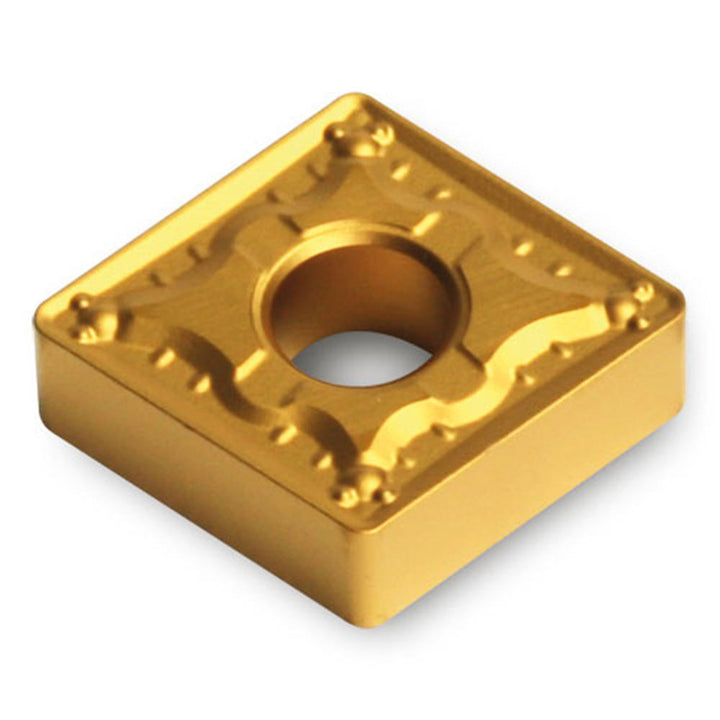

The Ingersoll Cutting Tools 6212177 is a CNMG190608PC TT8125B solid carbide indexable insert, grade TT8125B, TiCN coated. Suited for steel.
Specifications
Ansi codeCNMG642PCTT8125B
Chip breakerPC
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp
Insert length0.7600
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190608PC TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.3150
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
