Ingersoll Cutting Tools

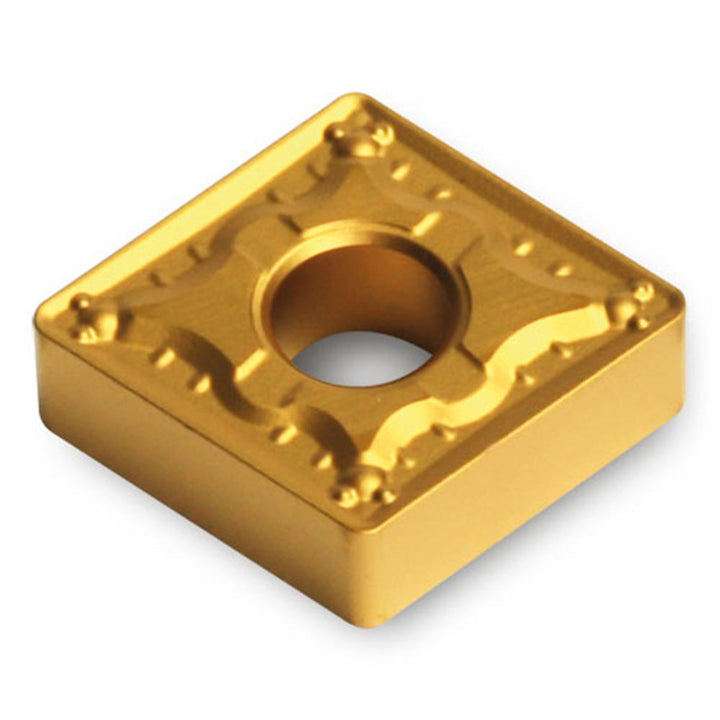

CNMG160608PC TT8125B Solid Carbide Insert, Grade TT8125B, TiCN - Ingersoll Cutting Tools 6212184
MFR# 6212184ISO/ANSI# CNMG160608PC TT8125BSeries CNMG
$27.18List $34.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeTT8125B
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 6212184 is a CNMG160608PC TT8125B solid carbide indexable insert, grade TT8125B, TiCN coated. Suited for steel.
Specifications
Ansi codeCNMG542PCTT8125B
Chip breakerPC
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6350
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608PC TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.2560
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
