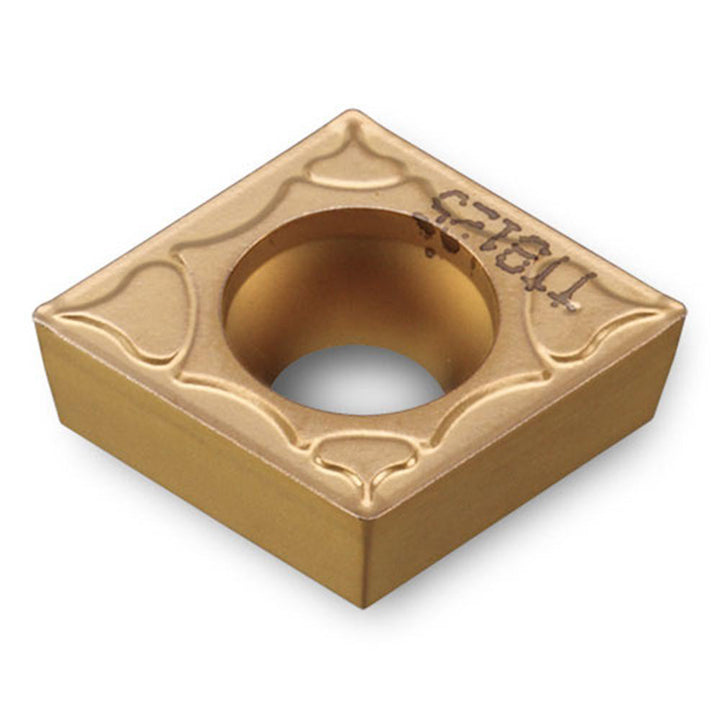

CCMT060204PC TT8125B Solid Carbide Insert, Grade TT8125B, TiCN - Ingersoll Cutting Tools 6212204
MFR# 6212204ISO/ANSI# CCMT060204PC TT8125BSeries CCMT
$13.29List $16.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT8125B
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 6212204 is a CCMT060204PC TT8125B solid carbide indexable insert, grade TT8125B, TiCN coated. Suited for steel.
Specifications
Ansi codeCCMT21.51PCTT8125B
Chip breakerPC
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0160
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness0.0940
Iso codeCCMT060204PC TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Tolerance codeM
Wiper edgeNo
