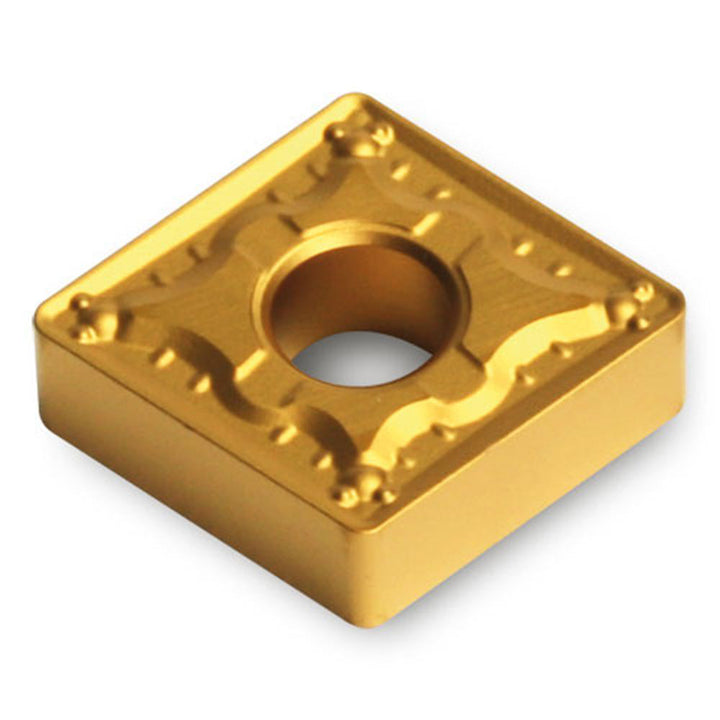

CNMG120408PC TT8105B Carbide Insert, Grade TT8105B, Al2O3 - Ingersoll Cutting Tools 6212266

Ingersoll Cutting Tools

CNMG120408PC TT8105B Carbide Insert, Grade TT8105B, Al2O3 - Ingersoll Cutting Tools 6212266

MFR# 6212266ISO/ANSI# CNMG120408PC TT8105BSeries CNMG

$15.95List $20.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT8105B
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 6212266 is a CNMG120408PC TT8105B carbide indexable insert, grade TT8105B, Al2O3 coated. Suited for steel.

Specifications

Chip breakerPC
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408PC TT8105B
Manufacturer gradeTT8105B
Maximum depth of cut0.1960
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
