Ingersoll Cutting Tools

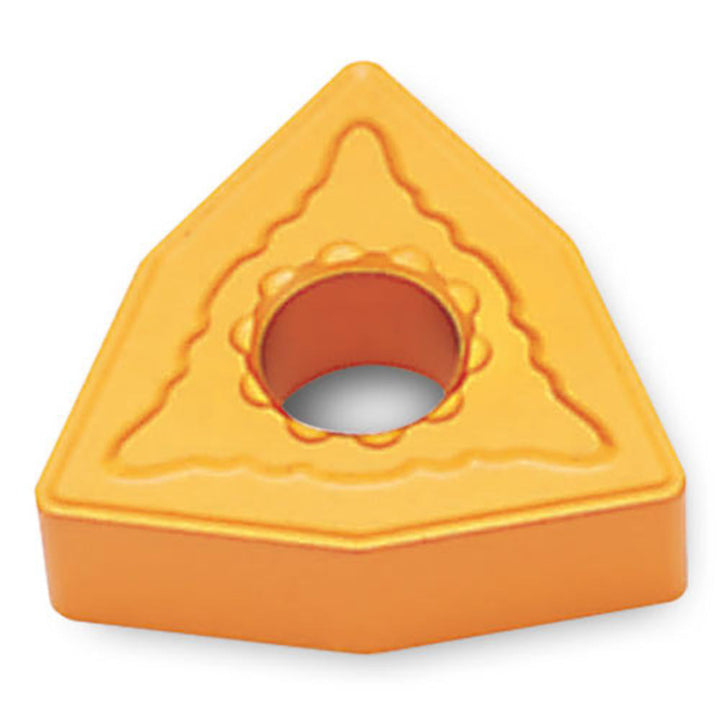

WNMG080408RT TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6212557
MFR# 6212557ISO/ANSI# WNMG080408RT TT8125BSeries WNMG
$14.92List $18.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTT8125B
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6212557 is a WNMG080408RT TT8125B carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.
Specifications
Chip breakerRT
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.3430
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness0.1870
Iso codeWNMG080408RT TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.1570
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1/2
Wiper edgeNo
