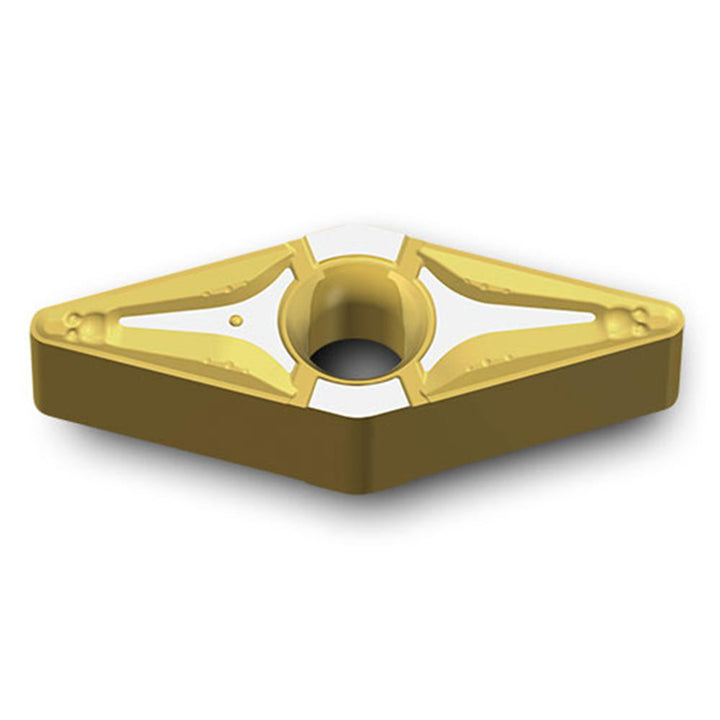

VNMX130404PC TT8115B Solid Carbide Insert, Grade TT8115B, TiCN - Ingersoll Cutting Tools 6212632
MFR# 6212632ISO/ANSI# VNMX130404PC TT8115BSeries VNMX
$17.77List $22.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeTT8115B
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 6212632 is a VNMX130404PC TT8115B solid carbide indexable insert, grade TT8115B, TiCN coated. Suited for steel.
Specifications
Ansi codeVNMX2.531PCTT8115B
Chip breakerPC
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0160
Included angle35.0
Inscribed circle0.3130
Insert handNeutral
Insert holding methodClamp
Insert length0.5460
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2.531
Insert styleVNMX
Insert thickness0.1870
Iso codeVNMX130404PC TT8115B
Manufacturer gradeTT8115B
Maximum depth of cut0.1180
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Wiper edgeNo
