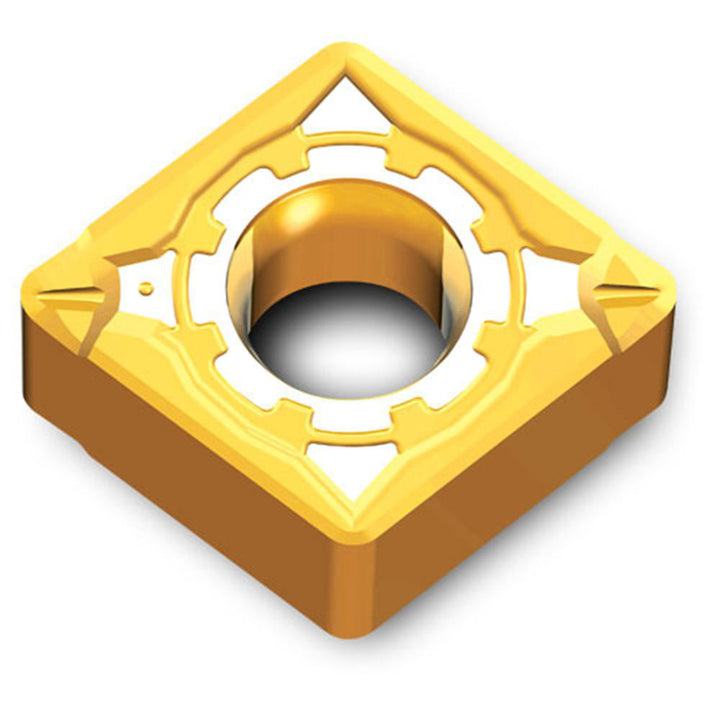

CNMG090408FG TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6212655
MFR# 6212655ISO/ANSI# CNMG090408FG TT8125BSeries CNMG
$12.10List $15.25
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT8125B
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6212655 is a CNMG090408FG TT8125B carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.
Specifications
Chip breakerFG
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG090408FG TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.0800
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Wiper edgeNo
