Ingersoll Cutting Tools

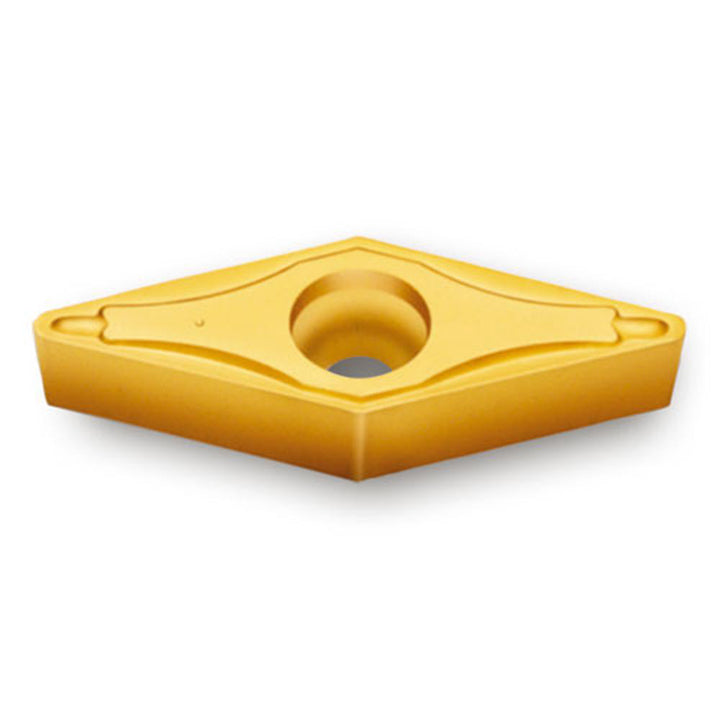

VBMT160408FG TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6212666
MFR# 6212666ISO/ANSI# VBMT160408FG TT8125BSeries VBMT
$24.63List $31.05
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT8125B
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6212666 is a VBMT160408FG TT8125B carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.
Specifications
Chip breakerFG
Clearance codeB
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Hole diameter0.1730
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVBMT
Insert thickness0.1870
Iso codeVBMT160408FG TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle5
Tolerance codeM
Wiper edgeNo
