Ingersoll Cutting Tools
CNMG160608MT TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6212684
MFR# 6212684ISO/ANSI# CNMG160608MT TT8125BSeries CNMG
$27.66List $34.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeTT8125B
MaterialCarbide
CoatingAl2O3
Description

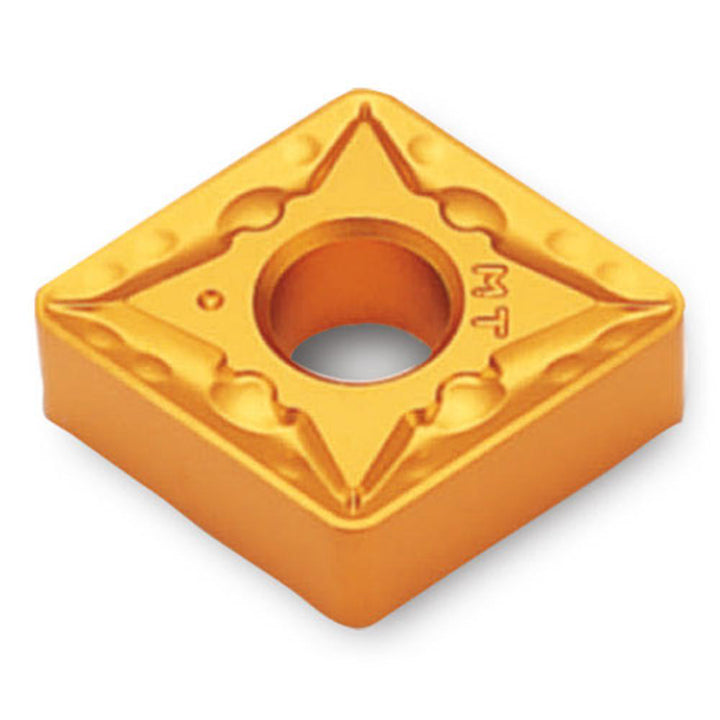

The Ingersoll Cutting Tools 6212684 is a CNMG160608MT TT8125B carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.
Specifications
Chip breakerMT
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0310
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6350
Insert materialCarbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608MT TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.2560
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in5/8
Wiper edgeNo
