Ingersoll Cutting Tools

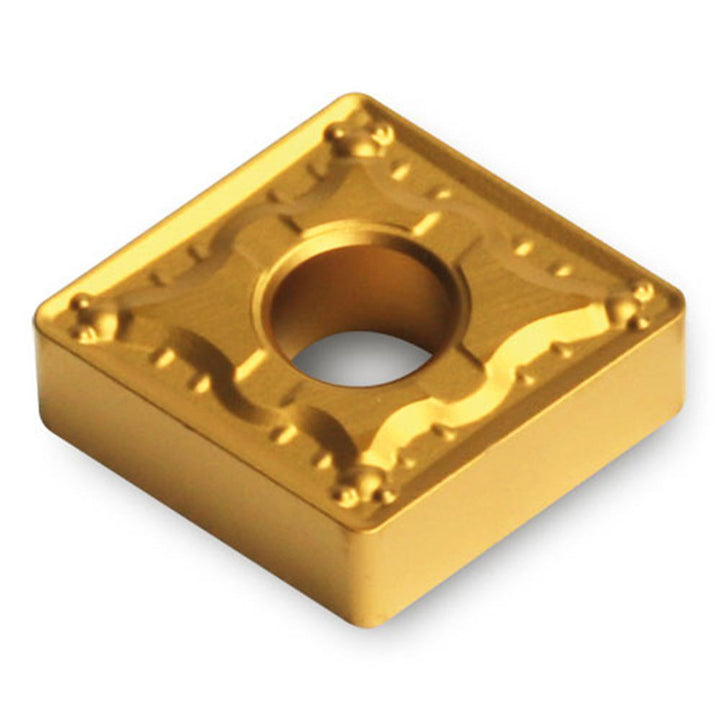

CNMG160612PC TT8105B Carbide Insert, Grade TT8105B, Al2O3 - Ingersoll Cutting Tools 6212812
MFR# 6212812ISO/ANSI# CNMG160612PC TT8105BSeries CNMG
$27.18List $34.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeTT8105B
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 6212812 is a CNMG160612PC TT8105B carbide indexable insert, grade TT8105B, Al2O3 coated. Suited for steel.
Specifications
Chip breakerPC
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0470
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6350
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612PC TT8105B
Manufacturer gradeTT8105B
Maximum depth of cut0.2560
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
