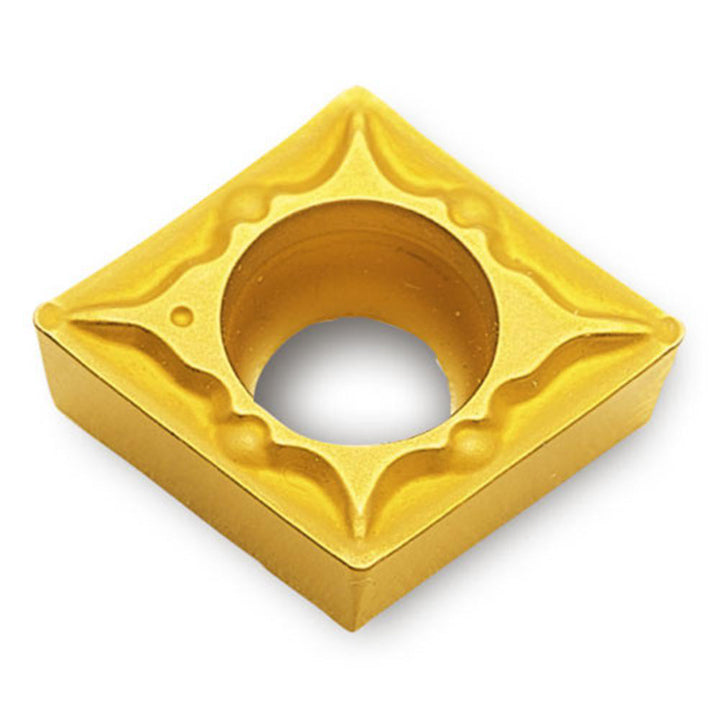

CCMT09T304FG TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6213052

Ingersoll Cutting Tools

CCMT09T304FG TT8125B Carbide Insert, Grade TT8125B, Al2O3 - Ingersoll Cutting Tools 6213052

MFR# 6213052ISO/ANSI# CCMT09T304Series CCMT

$15.27List $19.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT8125B
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 6213052 is a CCMT09T304FG TT8125B carbide indexable insert, grade TT8125B, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerFG
Chip breaker operationFinishing
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0160
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness0.1560
Iso codeCCMT09T304FG TT8125B
Iso insert codeCCMT09T304
Iso size code09T304
Manufacturer gradeTT8125B
Maximum depth of cut0.0590
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
