Ingersoll Cutting Tools

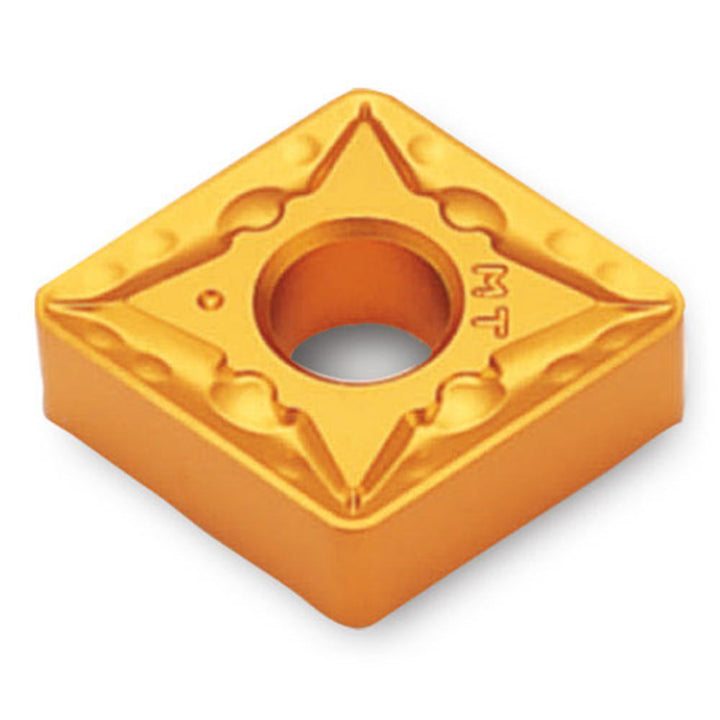

CNMG120408MT TT8115B Solid Carbide Insert, Grade TT8115B, TiCN - Ingersoll Cutting Tools 6213082
MFR# 6213082ISO/ANSI# CNMG120408MT TT8115BSeries CNMG
$15.95List $20.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT8115B
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 6213082 is a CNMG120408MT TT8115B solid carbide indexable insert, grade TT8115B, TiCN coated. Suited for steel.
Specifications
Ansi codeCNMG432MTTT8115B
Chip breakerMT
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120408MT TT8115B
Manufacturer gradeTT8115B
Maximum depth of cut0.1970
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
