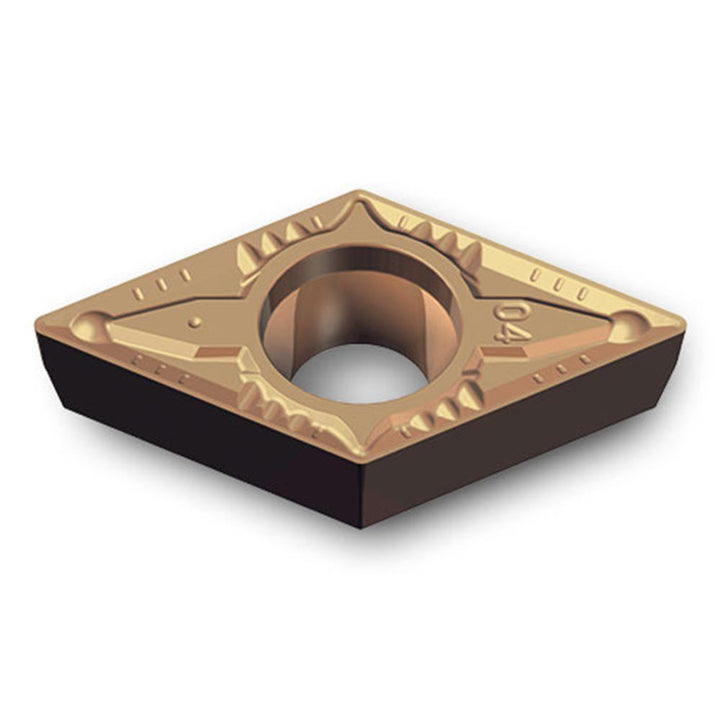

DCMT11T302FM TT8115B Carbide Insert, Grade TT8115B, Al2O3 - Ingersoll Cutting Tools 6213128

Ingersoll Cutting Tools

DCMT11T302FM TT8115B Carbide Insert, Grade TT8115B, Al2O3 - Ingersoll Cutting Tools 6213128

MFR# 6213128ISO/ANSI# DCMT11T302Series DCMT

$19.16List $24.15 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeTT8115B
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 6213128 is a DCMT11T302FM TT8115B carbide indexable insert, grade TT8115B, Al2O3 coated. Suited for steel.

Specifications

Ansi insert codeDCMT32.50.5
Ansi size code32.50.5
Chip breakerFM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0080
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4570
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.50.5
Insert styleDCMT
Insert thickness0.1560
Iso codeDCMT11T302FM TT8115B
Iso insert codeDCMT11T302
Iso size code11T302
Manufacturer gradeTT8115B
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
