Ingersoll Cutting Tools

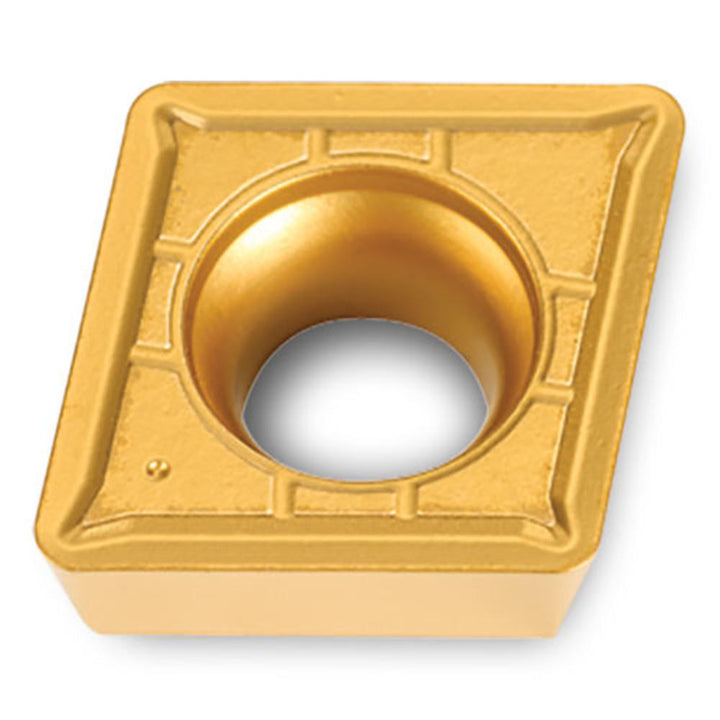

CPMT09T304PC TT8125B Solid Carbide Insert, Grade TT8125B, TiCN - Ingersoll Cutting Tools 6241355
MFR# 6241355ISO/ANSI# CPMT09T304PC TT8125BSeries CPMT
$15.27List $19.25
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT8125B
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 6241355 is a CPMT09T304PC TT8125B solid carbide indexable insert, grade TT8125B, TiCN coated. Suited for steel.
Specifications
Ansi codeCPMT32.51PCTT8125B
Chip breakerPC
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0160
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCPMT
Insert thickness0.1560
Iso codeCPMT09T304PC TT8125B
Manufacturer gradeTT8125B
Maximum depth of cut0.1180
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11
Tolerance codeM
Wiper edgeNo
